TOOL MAKER VISE OF SCREW TYPE - VD-Z
TOOL MAKER VISE OF SCREW TYPE - VD-Z

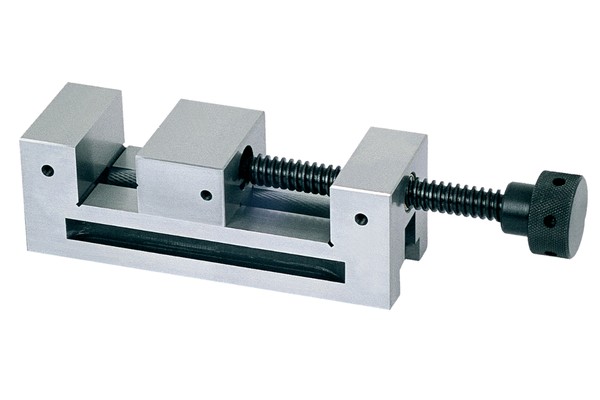

THE TOOL VISE is made of alloy
steel with carburizing treatment, ensuring high hardness and wear resistance.
It maintains excellent
precision and stable clamping performance whether used horizontally, vertically
or flat.
PARALLELISM: 0.005 MM / 100 MM
PERPENDICULARITY: 0.005 MM / 100 MM
|

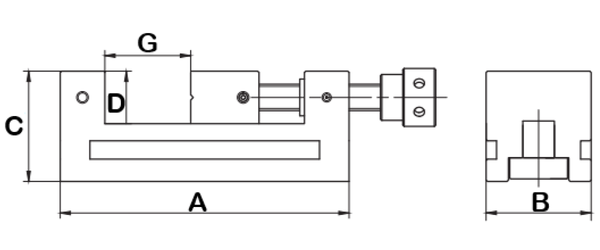

MODEL |
A |
B |
C |
D |
G |
HARDNESS |
KG |
|
VD-20-Z |
155 |
50 |
50 |
25 |
65 |
HRC58~62 |
2.3 |
|
VD-25-Z |
190 |
63 |
65 |
32 |
85 |
4.3 |
|
|
VD-30-Z |
210 |
73 |
74 |
35 |
100 |
5.8 |
|
|
VD-35-Z |
250 |
88 |
88 |
40 |
125 |
9.5 |
|
|
VD-40-Z |
260 |
100 |
95 |
45 |
125 |
13.0 |
|
