• CARBIDE TIPPED ROUGHING END MILL (MULTIPLE CONNECTED FLUTES)

CARBIDE TIPPED ROUGHING END MILL (MULTIPLE CONNECTED FLUTES)

Model : AISB

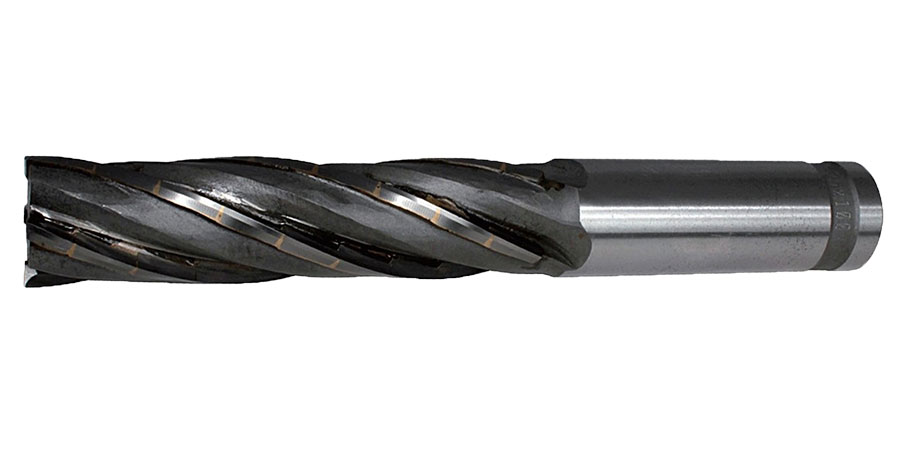

CARBIDE TIPPED ROUGHING END MILL (MULTIPLE CONNECTED FLUTES)


Roughing End Mill (Multiple Connected Flute), the flutes are made of multiple connected short flutes & carbide material to be a long flute and then welded on cutter, it can avoid the breakage during heavy milling and can mill quickly, suitable for rough machining and heavy cutting as well as with good chip release, excellent cutting ability and high metal cutting rate.

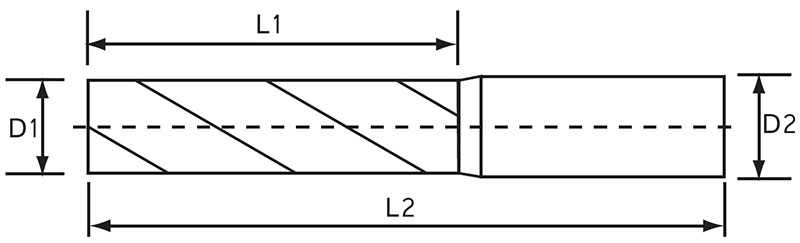

PART NO. DIAMETER (D1) FLUTE LENGTH (L1) FLUTE SHANK DIAMETER (D2) OVERALL LENGTH (L2)
AISB25-050-4C 25 50 4 25 135
AISB25-075-4C 25 75 4 25 160
AISB25-100-4C 25 100 4 25 200
AISB30-050-4C 30 50 4 32 135
AISB30-075-4C 30 75 4 32 180
AISB30-100-4C 30 100 4 32 205
AISB30-125-4C 30 125 4 32 230
AISB30-150-4C 30 150 4 32 255
AISB32-050-4C 32 50 4 32 135
AISB32-075-4C 32 75 4 32 180
AISB32-100-4C 32 100 4 32 205
AISB32-125-4C 32 125 4 32 230
AISB35-050-4C 35 50 4 32 135
AISB35-075-4C 35 75 4 32 180
AISB35-100-4C 35 100 4 32 205
AISB35-125-4C 35 125 4 32 230
AISB35-150-4C 35 150 4 32 255
AISB40-050-4C 40 50 4 32 135
AISB40-075-4C 40 75 4 42 180
AISB40-100-4C 40 100 4 42 205
AISB40-125-4C 40 125 4 42 230
AISB40-150-4C 40 150 4 42 255
AISB40-200-4C 40 200 4 42 305
AISB50-100-4C 50 100 4 42 205
AISB50-125-4C 50 125 4 42 230
AISB50-150-4C 50 150 4 42 255
AISB50-200-4C 50 200 4 42 305
AISB50-250-4C 50 250 4 42 355
