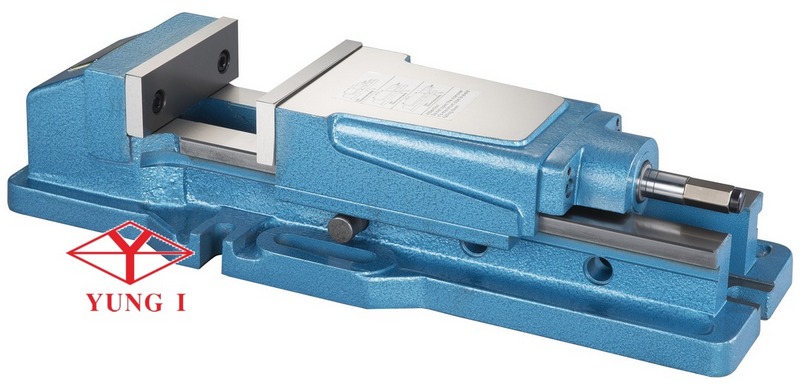

HYDRAULIC MACHINE VISE-INSIDE
HP - HYDRAULIC MACHINE VISE-INSIDE
|

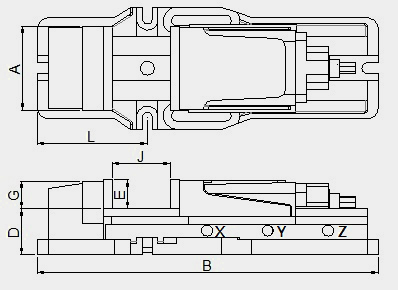

MODEL |
A |
B |
D |
E |
G |
L |
|
|
HP-4" |
106 |
440 |
58 |
36 |
35 |
147 |
|
|
HP-5" |
132 |
550 |
70.5 |
48 |
49.5 |
195 |
|
|
HP-6" |
152 |
620 |
82.5 |
53 |
52.5 |
210 |
|
|
HP-8" |
200 |
680 |
96 |
63 |
60 |
260 |
|
MODEL |
Opening position J |
Clamping force kgf |
Weight KG |
||
|
X position |
Y position |
Z position |
|||
|
HP-4" |
0-60 |
60-110 |
110-170 |
2500 |
22 |
|
HP-5" |
0-70 |
70-140 |
140-220 |
3000 |
38 |
|
HP-6" |
0-100 |
100-200 |
200-300 |
4500 |
53 |
|
HP-8" |
0-100 |
100-200 |
200-300 |
6000 |
85 |
Features：
l The new patented hydraulic cylinder, with the clamping force is more stable and canresist vibration machines, the function of easy relieve and maintenance. It's economical and durable.
l Holder of a large opening function and can quickly move back and forth.
l Vise body material is high ductility of cast iron, vise both sides of the slide hardened heat (HRC45 °), ensure high precision and high wear resistance, high tensile strength.
