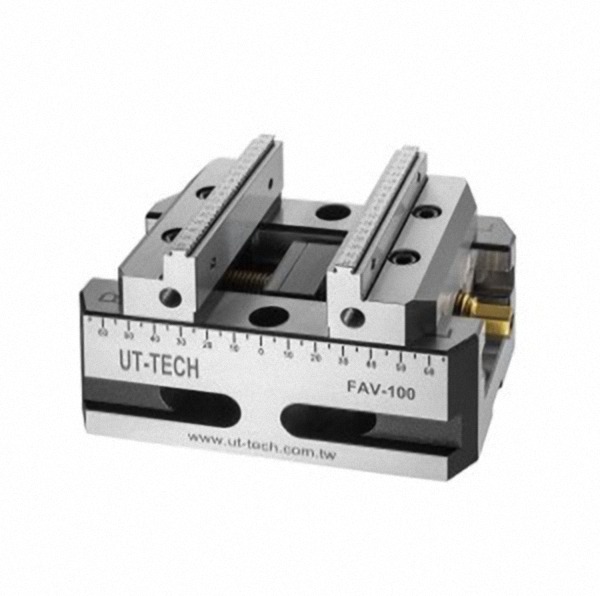

5 AXIS PRECISION VISE FAV-100

Features：

Ø  The accuracy of double clamping position is high for Self centering machine vise，(reaching 0.01mm)，It is suitable for 4-axis、5-axis CNC machine tools、indexing spacer or precision horizontal and vertical multi-milling and cutting machining centers.

Ø  The vise body materials and parts are made by high alloy steel. It is adjusted and hardened heat by high quality procedures. It has high strength、high wear-resistance、high anti-tension features. The accuracy of datum plane and clamping side is high after precision multi-machining and grinding.

Ø  The screw rod is adjusted and processed by high frequency , then processed by precision titanium plating. It increased the strength and wear-resistance substantially.

Ø  The heat treatment of jaw plates is HRC45°. It can clamp hardness materials of below HRC40°.

Ø  The design of jaw plates holes for moving block. It can change and increase the needing jaw plates fast to match the clamping demands for different machining work pieces. The clamping work pieces will be used more diverse and flexible.

Ø  The vise has five clamping ways to suit for different machining ways and work piece size. To provide flexible clamping ways.

Ø  The vise can be used by locked blocks and guide keys and connected joint plates or fixed on the working table directly.

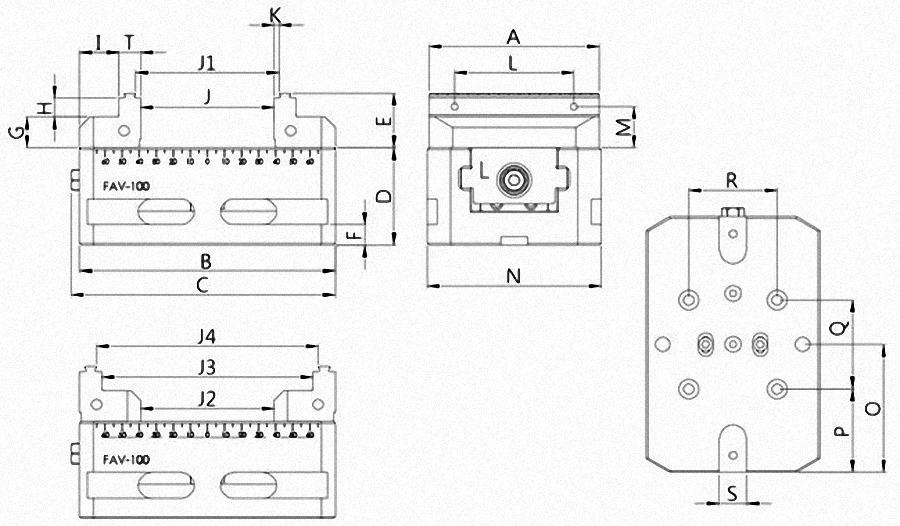

Ø  The height of vise body has fixed dimension.（D），It can be used by many quantities of vises at the same time.
