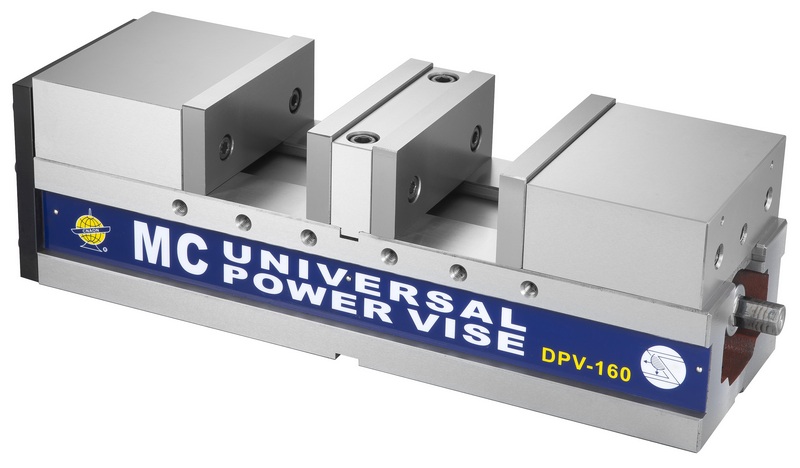

MC DOUBLE LOCK & ANGLOCK MACHINE VISE
DPV - MC DOUBLE LOCK & ANGLOCK MACHINE VISE
|

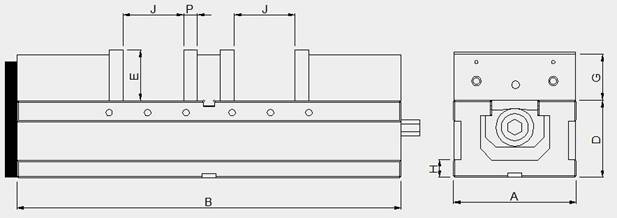

MODEL |
A |
B |
D |
E |
G |
H |
P |
J |
G.W. KG |
|
DPV-160 |
160 |
500 |
100 |
63 |
60 |
23 |
18 |
70 |
64 |
Features：
l Double clamping mechanism, unilateral opening can be adjusted with the range, do two simultaneous machining workpieces of different sizes.
l When the case of a larger workpiece, the original opening is no insufficient clamp, you can dismantle the middle of the clamping jaw to increase clamping distance.
l Vise body material is high ductility of spherical graphite cast iron (FCD600), vise both sides of the slide hardened heat (HRC50°), ensure high precision and high wear resistance, high tensile strength.

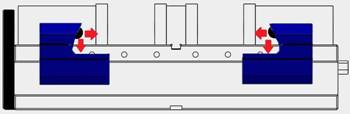

l Angle lock semi-sphere can be generated under the power of the lock, remove workpiece to be lifted.

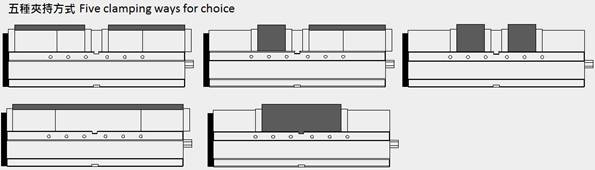

l The vise has five clamping ways.
l The vise with anti-litter design prevents iron filings into the vise, and iron filings easily discharged inside the interior and extend its lifetime.
