CARBIDE TIPPED DOUBLE ANGLE SIDE MILLING CUTTER
Model :
AHTW
CARBIDE TIPPED DOUBLE ANGLE SIDE MILLING CUTTER
Double Angle Side Milling Cutter is welded with carbide teeth and suitable for up/down chamfering and milling the angle groove.

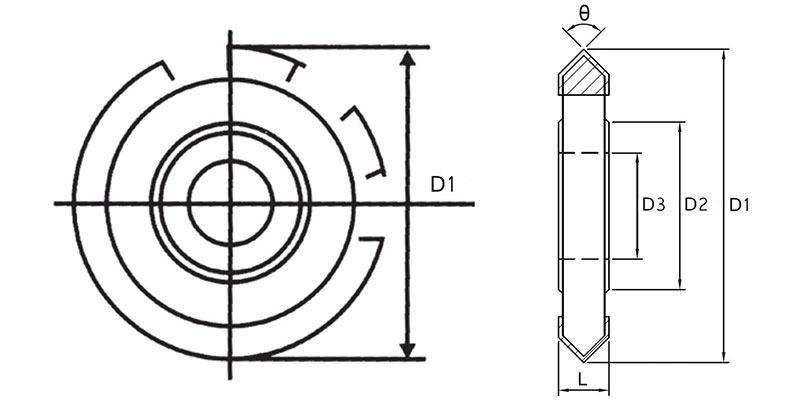

| PART NO. | DIAMETER (D1) | FLUTE LENGTH (L1) | ANGLE (Θ) | FLUTE | CONNECTING DIAMETER (D2) | BORE DIAMETER (D3) |
|---|---|---|---|---|---|---|
| AHTW075-12-060 | 75 | 12 | 60° | 14 | 40 | 25.4 |
| AHTW075-12-090 | 75 | 12 | 90° | 16 | 40 | 25.4 |
| AHTW075-12-120 | 75 | 12 | 120° | 16 | 40 | 25.4 |
| AHTW100-12-060 | 100 | 12 | 60° | 16 | 40 | 25.4 |
| AHTW100-12-090 | 100 | 12 | 90° | 18 | 40 | 25.4 |
| AHTW100-12-120 | 100 | 12 | 120° | 18 | 40 | 25.4 |
