Screw jack

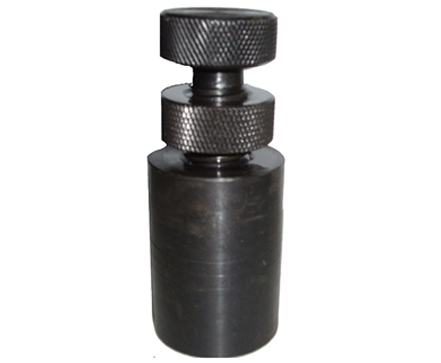

CK-S Screw jack
l Purpose: Height is adjustable for supporting the working piece on table
l Material: S45C, black oxide furnished

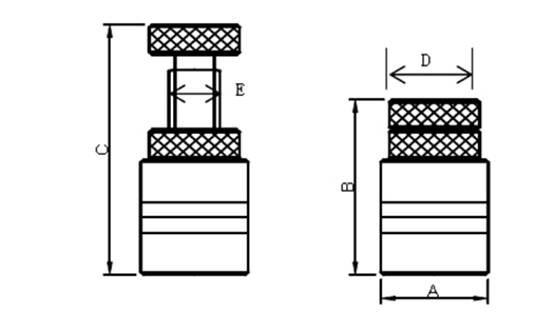

Order no.
Thread size
Appliable range(mm)
Max. support loading
S-70
Tr14x3
56~75
S-100
Tr18x4
76~105
15 tons
S-150
Tr24x5
102~160
21.5 tons
S-250S
Tr32x5
142~235
46 tons
S-250L
Tr32x5
160~260
46 tons
S-300
Tr32x5
200~345
46 tons
S-400
Tr32x5
300~430
46 tons
|
Order no. |
Thread size |
Appliable range(mm) |
Max. support loading |
|
S-70 |
Tr14x3 |
56~75 |
|
|
S-100 |
Tr18x4 |
76~105 |
15 tons |
|
S-150 |
Tr24x5 |
102~160 |
21.5 tons |
|
S-250S |
Tr32x5 |
142~235 |
46 tons |
|
S-250L |
Tr32x5 |
160~260 |
46 tons |
|
S-300 |
Tr32x5 |
200~345 |
46 tons |
|
S-400 |
Tr32x5 |
300~430 |
46 tons |
