End Mill Re-sharping Machine GH-413 GH1225
End Mill Re-sharping Machine GH-413 GH1225
- For End Mill Re-sharpening, 2,3 and 4 Flutes Precision, Efficiency, Easy Operation, Short Processing Time,
- Grinding Diameter from(GH413-4～13mm、GH1225-12～25mm
- High Efficiency, High Quality Grinding Slip, Good Grinding Results
- Quality Assurance : 0.02mm
- Easy Operation, and Fast for Convenience
|
Type |
Capacity |
Motor / Speed |
Weight |
L x W x H |
|
GH-413 |
4mm - 13mm |
450 w / 6000 rpm |
17 公斤 |
310*260*290 |
|
GH-1225 |
12mm - 25mm |
1000 w / 4500 rpm |
30 公斤 |
360*290*340 |
|

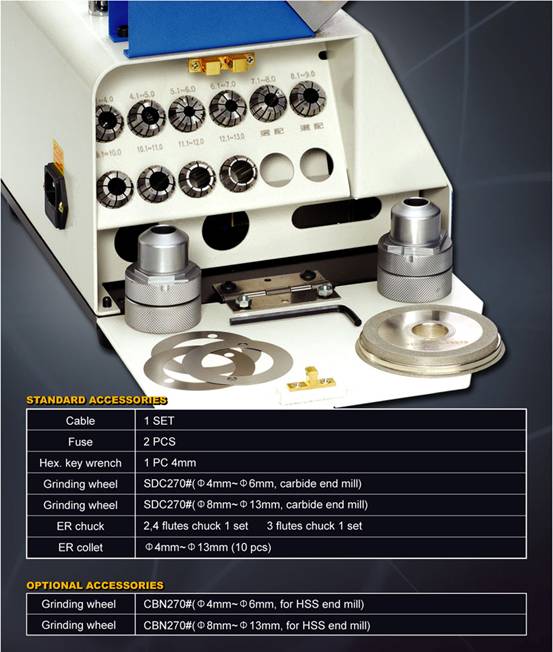

Standard Accessories |
* SDC (Carbide) CBN (High Speed) |
|
Cable |
1 PCS |
|
Fuse |
2 PCS |
|
Hex key wrench |
4mm*1 |
|
Diamond Wheel |
GH-413 SDC300# (4mm～5mm) |
|
GH-413 SDC300# (6mm～13mm) |
|
|
GH-1225 CBN150# (12mm～25mm) |
|
|
GH-1225 SDC150# (12mm～25mm) |
|
|
ER Chuck |
2, 4 flutes chuck*1 set 3 flutes chuck*1 set |
|
ER Collet |
GH-413 4～13mm(10pcs) / GH-1225 12,16,18,20,22,25mm(6pcs) |
|
Option Accessories |
|
|
Diamond Wheel |
GH-413 CBN300# (4mm～5mm) |
|
GH-413 CBN300# (6mm～13mm) |
|
|
GH-413 CBN300# (4mm～13mm) 2 flutes |
|
|
GH-413 SDC300# (4mm～13mm) 2 flutes |
|
|
GH-1225 CBN150# (12mm～25mm) 2 flutes |
|
|
GH-1225 SDC150# (12mm～25mm) 2 flutes |
