CARBIDE TIPPED CONVEX HALF-CIRCLE SIDE MILLING CUTTER

Convex Half-Circle Side Milling Cutter is welded with the carbide teeth and suitable for milling half-circle concave shape.

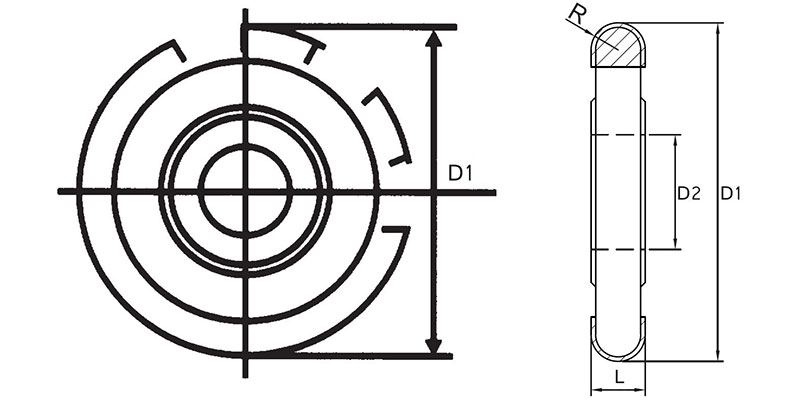

PART NO.	DIAMETER (D1)	FLUTE LENGTH (L1)	CORNER RADIUS (R)	FLUTE	BORE DIAMETER (D2)
AHTU075-15	75	3	1.5R	14	25.4
AHTU075-20	75	4	2R	14	25.4
AHTU075-25	75	5	2.5R	14	25.4
AHTU075-30	75	6	3R	14	25.4
AHTU075-35	75	7	3.5R	14	25.4
AHTU075-40	75	8	4R	14	25.4
AHTU075-50	75	10	5R	14	25.4
AHTU075-60	75	12	6R	14	25.4
AHTU100-15	100	3	1.5R	16	25.4
AHTU100-20	100	4	2R	16	25.4
AHTU100-25	100	5	2.5R	16	25.4
AHTU100-30	100	6	3R	16	25.4
AHTU100-35	100	7	3.5R	16	25.4
AHTU100-40	100	8	4R	16	25.4
AHTU100-45	100	9	4.5R	16	25.4
AHTU100-50	100	10	5R	16	25.4
AHTU100-60	100	12	6R	16	25.4
AHTU125-25	125	5	2.5R	18	25.4
AHTU125-30	125	6	3R	18	25.4
AHTU125-35	125	7	3.5R	18	25.4
AHTU125-40	125	8	4R	18	25.4
AHTU125-45	125	9	4.5R	18	25.4
AHTU125-50	125	10	5R	18	25.4
AHTU125-60	125	12	6R	18	25.4
AHTU150-25	150	5	2.5R	20	25.4
AHTU150-30	150	6	3R	20	25.4
AHTU150-35	150	7	3.5R	20	25.4
AHTU150-40	150	8	4R	20	25.4
AHTU150-45	150	9	4.5R	20	25.4
AHTU150-50	150	10	5R	20	25.4
AHTU150-60	150	12	6R	20	25.4
