Step block

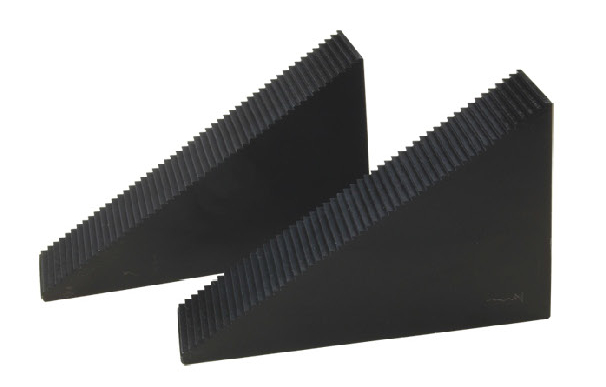

三角級枕CK-SB  Step block





l          Purpose: The height of block is adjustable when stack up a pair of step block

l          Material: S45C, black oxide furnished

l          Heat treatmentHRC32±5°

l          Product spec.:
3/8S 3/8M 3/8L (thickness 25mm)
1/2S 1/2M 1/2L (thickness 32mm)
3/4S 3/4M 3/4L (thickness 38mm)
1S 1M 1L (thickness 50mm)



Order no.

Model

A

B

C

SB-53031

3/8S

19

30

25

SB-53032

3/8M

29

47

25

SB-53033

3/8L

59

97

25

SB-54041

1/2S

19

30

32

SB-54042

1/2M

27

45

32

SB-54043

1/2L

59

97

32

SB-56061

3/4S

38

59

38

SB-56062

3/4M

61

97

38

SB-56063

3/4L

88

140

38

SB-58081

1S

37

63

50

SB-58082

1M

59

98

50

SB-58083

1L

81

140

50
