CARBIDE TIPPED SINGLE ANGLE SIDE MILLING CUTTER
Model :
AHTC
CARBIDE TIPPED SINGLE ANGLE SIDE MILLING CUTTER

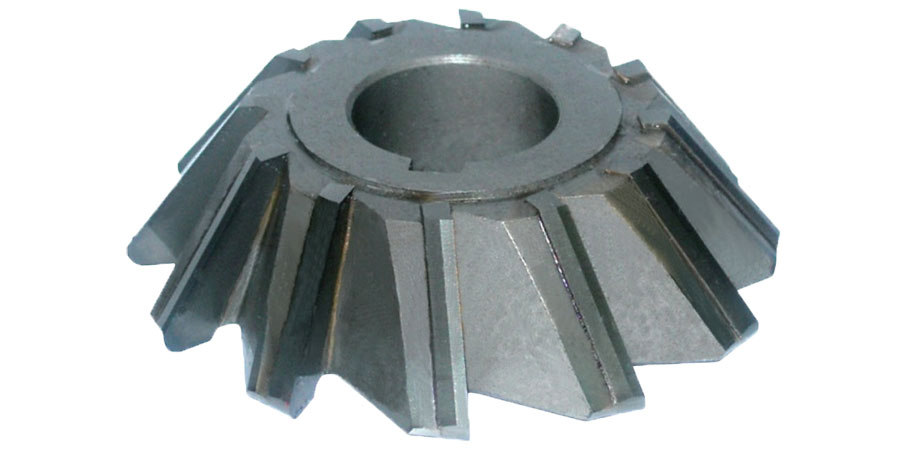

Single Angle Side Milling Cutter is welded with carbide teeth and suitable for milling the asymmetrical V-groove.

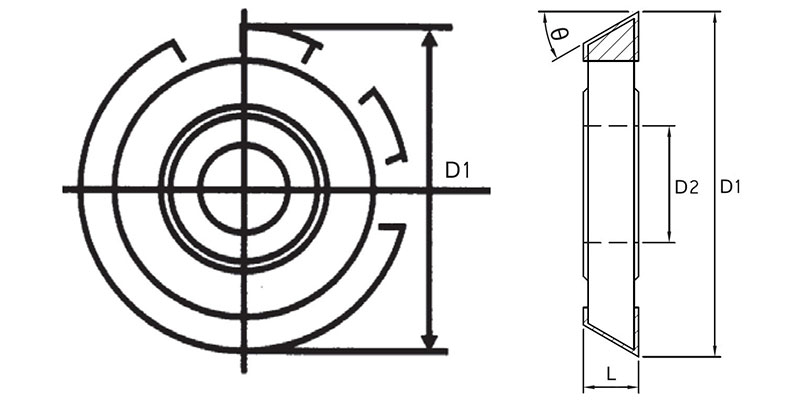

| PART NO. | DIAMETER (D1) | FLUTE LENGTH (L1) | ANGLE (Θ) | FLUTE | BORE DIAMETER (D2) |
|---|---|---|---|---|---|
| AHTC075-12-030 | 75 | 12 | 30° | 16 | 25.4 |
| AHTC075-12-045 | 75 | 12 | 45° | 16 | 25.4 |
| AHTC100-12-030 | 100 | 12 | 30° | 18 | 25.4 |
| AHTC100-12-045 | 100 | 12 | 45° | 18 | 25.4 |
