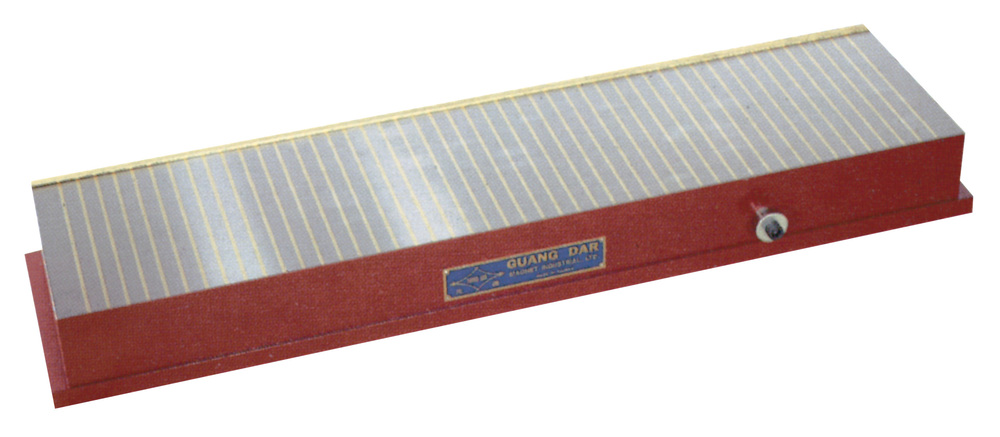

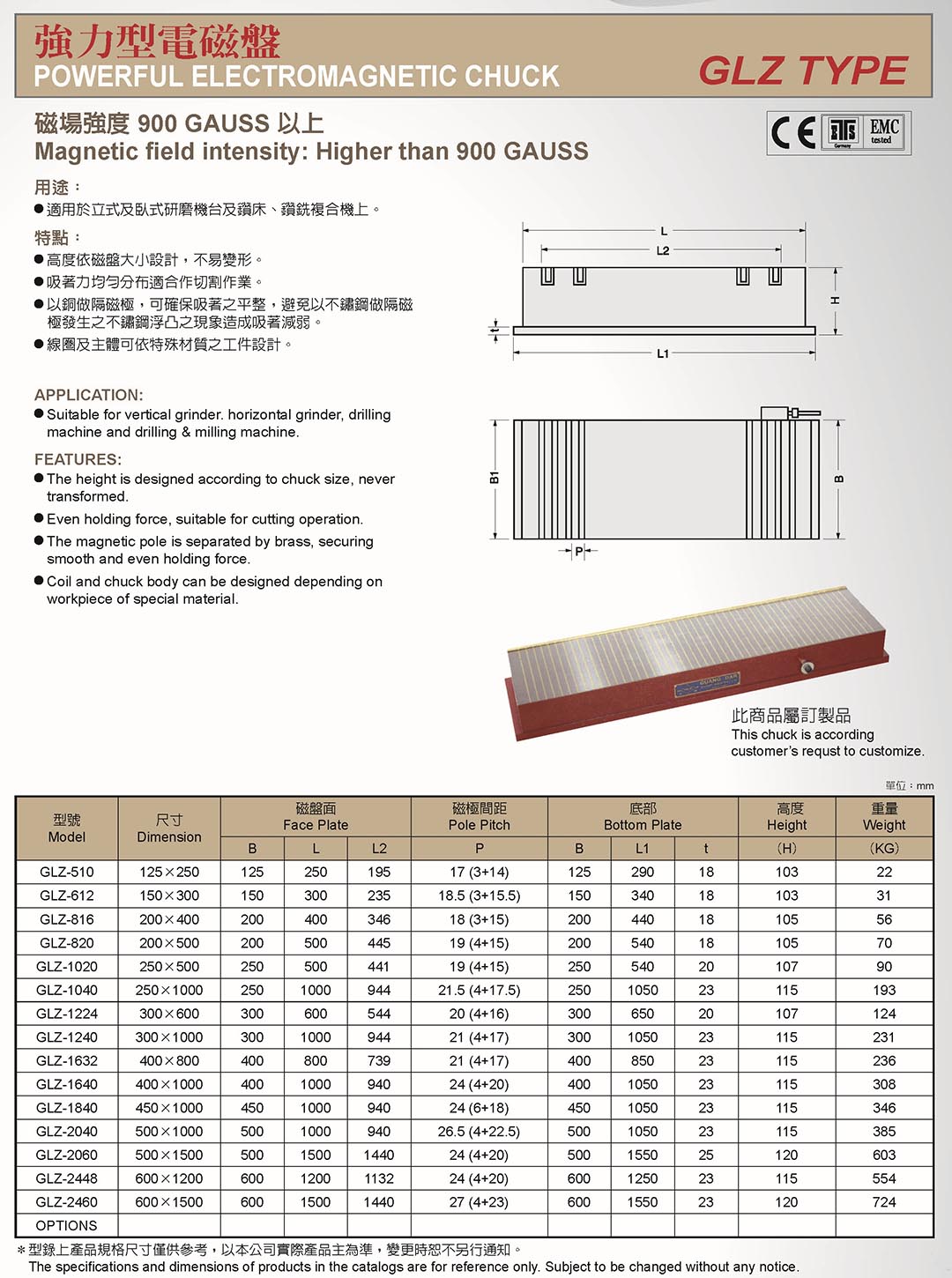

Powerful Electromagnetic Chuck
Powerful Electromagnetic Chuck
APPLICATION:
● Suitable for vertical grinder. horizontal grinder, drilling machine and drilling & milling machine.
FEATURES﹕
● The height is designed according to chuck size, never transformed.
● Even holding force, suitable for cutting operation.
● The magnetic pole is separated by brass, securing smooth and even holding force.
● Coil and chuck body can be designed depending on workpiece of special material.
|

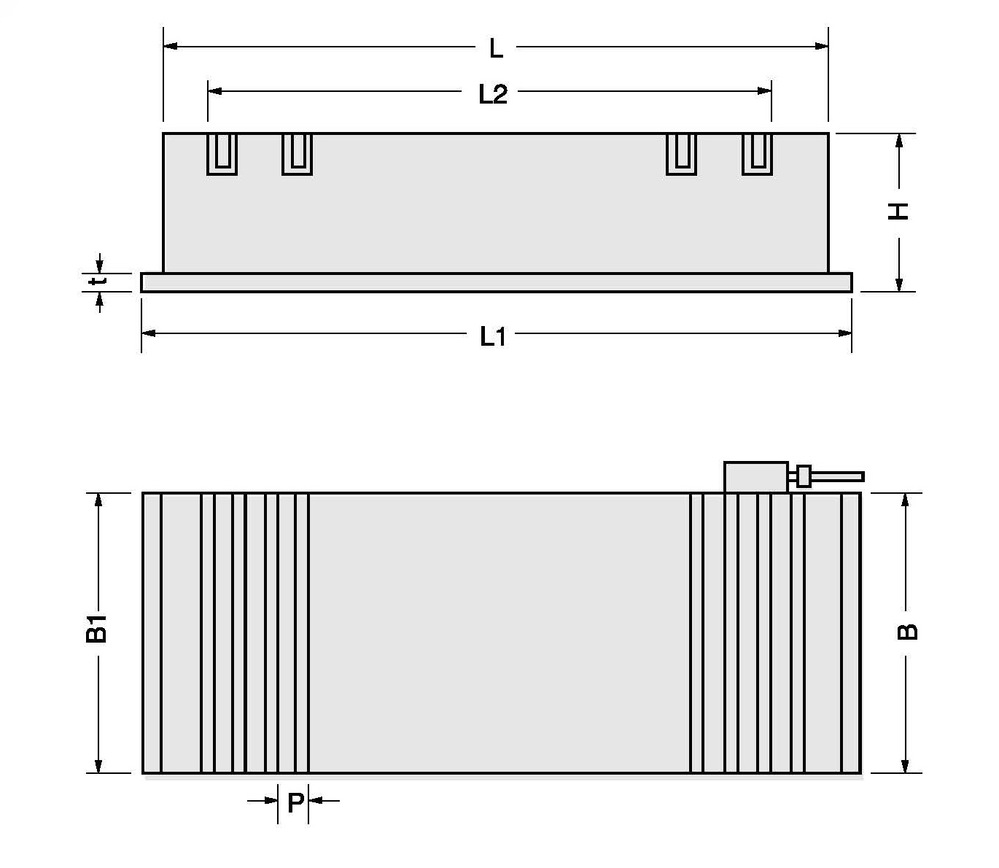

Model |
Dimension |
Face Plate |
Pole Pitch |
Bottom Plate |
Height |
Weight |
||||
|
B |
L |
L2 |
P |
B |
L1 |
t |
(H) |
(KG) |
||
|
GLZ-510 |
125×250 |
125 |
250 |
195 |
17 (3+14) |
125 |
290 |
18 |
103 |
22 |
|
GLZ-612 |
150×300 |
150 |
300 |
235 |
18.5 (3+15.5) |
150 |
340 |
18 |
103 |
31 |
|
GLZ-816 |
200×400 |
200 |
400 |
346 |
18 (3+15) |
200 |
440 |
18 |
105 |
56 |
|
GLZ-820 |
200×500 |
200 |
500 |
445 |
19 (4+15) |
200 |
540 |
18 |
105 |
70 |
|
GLZ-1020 |
250×500 |
250 |
500 |
441 |
19 (4+15) |
250 |
540 |
20 |
107 |
90 |
|
GLZ-1040 |
250×1000 |
250 |
1000 |
944 |
21.5 (4+17.5) |
250 |
1050 |
23 |
115 |
193 |
|
GLZ-1224 |
300×600 |
300 |
600 |
544 |
20 (4+16) |
300 |
650 |
20 |
107 |
124 |
|
GLZ-1240 |
300×1000 |
300 |
1000 |
944 |
21 (4+17) |
300 |
1050 |
23 |
115 |
231 |
|
GLZ-1632 |
400×800 |
400 |
800 |
739 |
21 (4+17) |
400 |
850 |
23 |
115 |
236 |
|
GLZ-1640 |
400×1000 |
400 |
1000 |
940 |
24 (4+20) |
400 |
1050 |
23 |
115 |
308 |
|
GLZ-1840 |
450×1000 |
450 |
1000 |
940 |
24 (6+18) |
450 |
1050 |
23 |
115 |
346 |
|
GLZ-2040 |
500×1000 |
500 |
1000 |
940 |
26.5 (4+22.5) |
500 |
1050 |
23 |
115 |
385 |
|
GLZ-2060 |
500×1500 |
500 |
1500 |
1440 |
24 (4+20) |
500 |
1550 |
25 |
120 |
603 |
|
GLZ-2448 |
600×1200 |
600 |
1200 |
1132 |
24 (4+20) |
600 |
1250 |
23 |
115 |
554 |
|
GLZ-2460 |
600×1500 |
600 |
1500 |
1440 |
27 (4+23) |
600 |
1550 |
23 |
120 |
724 |
|
OPTIONS |
|
|
|
|
|
|
|
|
|
|
