Chuck Controller
GD-201-5A/G905 Chuck Controller

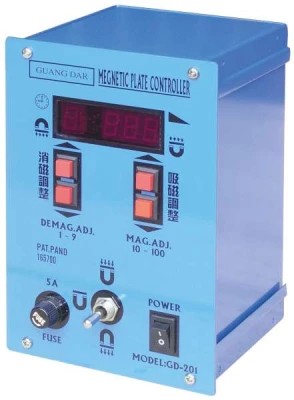

CHUCK CONTROLLER - GD-201-5A
● AC/110V or AC/220V Capacity is 5A.
Model
Input Voltage
Output
Dimension (mm)
NET Weight
(Single Phase)
Voltage
Current
L
W
H
(KG)
GD-201-5A
1.
AC 110V
DC 10V~100V
5A
200
135
125
3.2 kg
2.
AC 220V
● DC 10V~100V adjustable, digital (LED) display, easy to set up.
● With IC demagnetize installation, demagnetized time is 6sec.-10sec.
● When the workpiece is in the range of magnetic field of magnetic chucks, the workpiece with the magnetic field of the magnetic chuck can be removed conveniently.
● Attachment of fixed plate, can be convenviently fixed at the desired
● GD-201-5A The synchronous charge contact works the mechanical controller so that the machine operates only when charge is activated to ensure the safety of the operator.

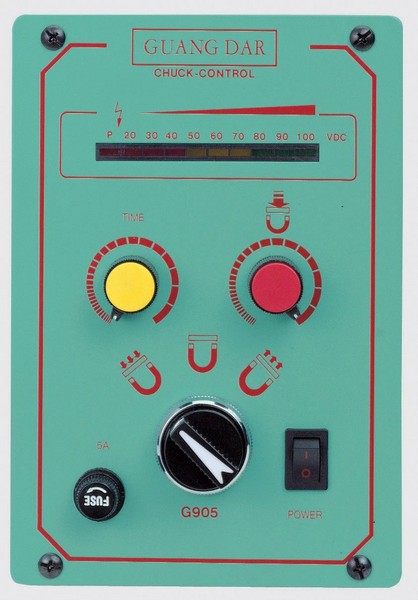

CHUCK CONTROLLER - G905-5A
● AC/110V or AC/220V Capacity is 5A.● DC 10V~100V adjustable, digital (LED) display, easy to set up.
● With IC demagnetize installation, demagnetized time is 6sec.-10sec.
● When the workpiece is in the range of magnetic field of magnetic chucks, the workpiece with the magnetic field of the magnetic chuck can be removed conveniently.
● Attachment of fixed plate, can be convenviently fixed at the desired
● GD-201-5A The synchronous charge contact works the mechanical controller so that the machine operates only when charge is activated to ensure the safety of the operator.
|
Model |
Input Voltage |
Output |
Dimension (mm) |
NET Weight |
||||
|
(Single Phase) |
Voltage |
Current |
L |
W |
H |
(KG) |
||
|
G905-5A |
1. |
AC 110V |
DC 10V~100V |
5A |
200 |
137 |
122 |
3.5 kg |
|
2. |
AC 220V |
|||||||
