CARBIDE TIPPED OVER-CENTER END MILL
Model :
AISF

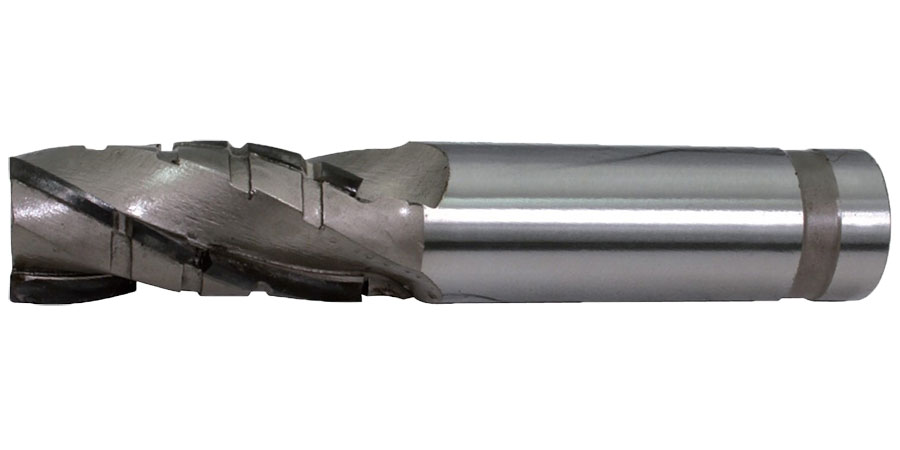

CARBIDE TIPPED OVER-CENTER END MILL
Over-Center End Mill is welded with carbide flutes and suitable for side milling and the groove milling.
The flutes of front end are over-center to feeding forward and direct-milling on the parallel surface.
high-precision & professional cutting tools are applicable for all kinds of heavy milling processing such as Machine Processing Industries, Metal Mold Industries, Automotive & Automotive Accessories Industries..etc. With skillful technology and high-quality tungsten material as well as strict surveillance of manufacturing and welding, we provide high-quality products. In order to extend the long life cycle of cutting tools and reduce the customer cost

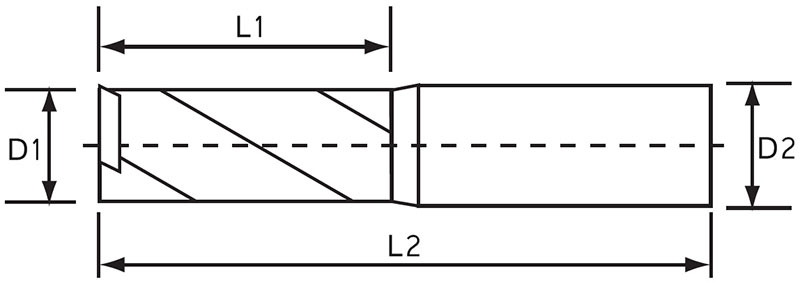

| PART NO. | DIAMETER (D1) | FLUTE LENGTH (L1) | FLUTE | SHANK DIAMETER (D2) | OVERALL LENGTH (L2) |
|---|---|---|---|---|---|
| AISF12-030-2C | 12 | 30 | 2 | 12 | 105 |
| AISF13-030-2C | 13 | 30 | 2 | 12 | 105 |
| AISF14-030-2C | 14 | 30 | 2 | 12 | 105 |
| AISF15-030-2C | 15 | 30 | 2 | 16 | 105 |
| AISF16-030-2C | 16 | 30 | 2 | 16 | 105 |
| AISF16-050-2C | 16 | 50 | 2 | 16 | 125 |
| AISF17-030-2C | 16 | 30 | 2 | 16 | 105 |
| AISF18-040-2C | 18 | 40 | 2 | 20 | 115 |
| AISF19-040-2C | 19 | 40 | 2 | 20 | 125 |
| AISF20-040-2C | 20 | 40 | 2 | 20 | 125 |
| AISF21-040-2C | 21 | 40 | 2 | 20 | 125 |
| AISF22-040-2C | 22 | 40 | 2 | 20 | 125 |
| AISF23-040-2C | 23 | 40 | 2 | 25 | 125 |
| AISF23-050-2C | 23 | 50 | 2 | 25 | 135 |
| AISF24-050-2C | 24 | 50 | 2 | 25 | 135 |
| AISF25-050-2C | 25 | 50 | 2 | 25 | 135 |
| AISF25-050-3C | 25 | 50 | 3 | 25 | 135 |
| AISF26-050-2C | 26 | 50 | 2 | 25 | 135 |
| AISF27-050-2C | 27 | 50 | 2 | 25 | 135 |
| AISF28-050-2C | 28 | 50 | 2 | 25 | 135 |
| AISF29-050-2C | 29 | 50 | 2 | 32 | 135 |
| AISF30-050-2C | 30 | 50 | 2 | 32 | 135 |
| AISF30-050-3C | 30 | 50 | 3 | 32 | 135 |
| AISF30-050-4C | 30 | 50 | 4 | 32 | 135 |
| AISF31-050-2C | 31 | 50 | 2 | 32 | 135 |
| AISF32-050-2C | 32 | 50 | 2 | 32 | 135 |
| AISF32-050-4C | 32 | 50 | 4 | 32 | 135 |
| AISF33-050-2C | 33 | 50 | 2 | 32 | 135 |
| AISF34-050-2C | 34 | 50 | 2 | 32 | 135 |
| AISF35-050-2C | 35 | 50 | 2 | 32 | 135 |
| AISF40-050-2C | 40 | 50 | 2 | 32 | 135 |
