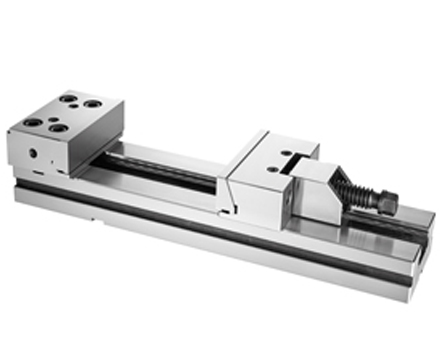

QUICK PRECISION VISE
CGT QUICK PRECISION VISE
|
MODEL |
A |
B |
D |
G |
H |
W |
J |
KG |
|
CGT-100-100 |
100 |
270 |
35 |
30 |
30 |
100 |
100 |
12 |
|
CGT-125-150 |
125 |
345 |
40 |
40 |
40 |
125 |
150 |
19 |
|
CGT-150-200 |
150 |
420 |
50 |
50 |
50 |
150 |
200 |
34 |
|
CGT-150-300 |
150 |
520 |
50 |
50 |
50 |
150 |
300 |
38 |
|
CGT-175-300 |
175 |
555 |
58 |
60 |
60 |
175 |
300 |
57 |
|
CGT-200-300 |
200 |
595 |
70 |
65 |
65 |
200 |
300 |
90 |
|
CGT-200-500 |
200 |
795 |
70 |
65 |
65 |
200 |
500 |
104 |
|
CGT-300-300 |
300 |
635 |
75 |
80 |
80 |
300 |
300 |
120 |
|
CGT-300-500 |
300 |
835 |
75 |
80 |
80 |
300 |
500 |
160 |
Features：
l Made of high-quality alloy steel.
l Vise both sides of the slide hardened heat HRC58°~62°.
l It has interchangeable base, fixed / movable jaw is quick to clamp and easy to operate.
l It is widely used on machining center and other precision machines.
l Parallelism accuracy is 0.005mm/100mm, vertical accuracy is 0.005mm.
