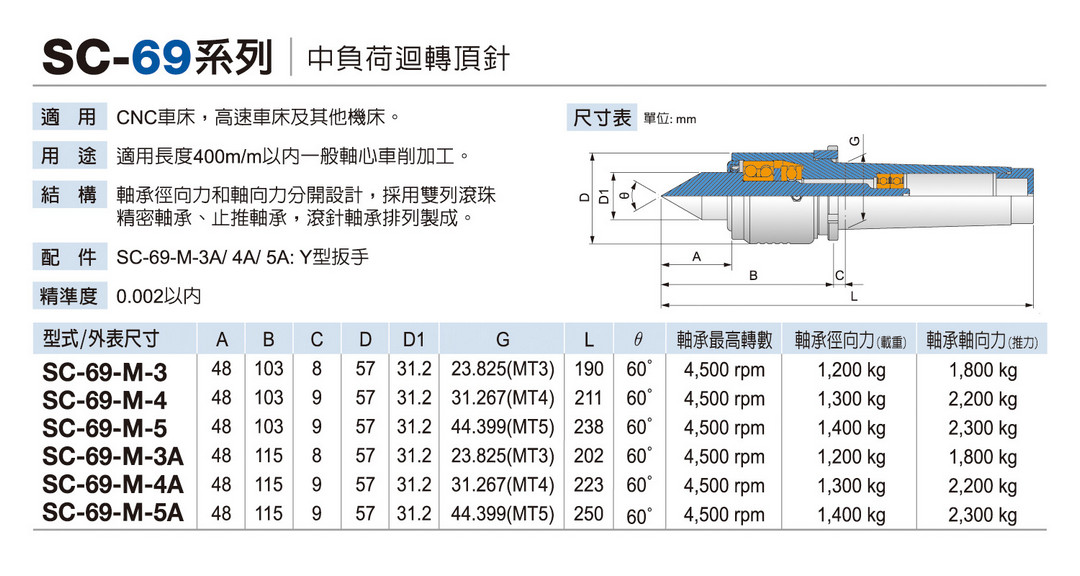

SC-69 Midium-Load Live Center

l   Applicable: CNC lathes, high-speed lathes and other machine tools.

l   Application: Suitable for general axis turning within 400m/m in length.

l   Structure: The radial force and axial force of the bearing are designed separately, and the double row ball precision bearing, thrust bearing and needle roller bearing are arranged in an arrangement.

l   Accessories: SC-69-M-3A/ 4A/ 5A: Y-type wrench

l   Accuracy: within 0.002

Products with "A" in the model number indicate that the thimble has a nut attached.
