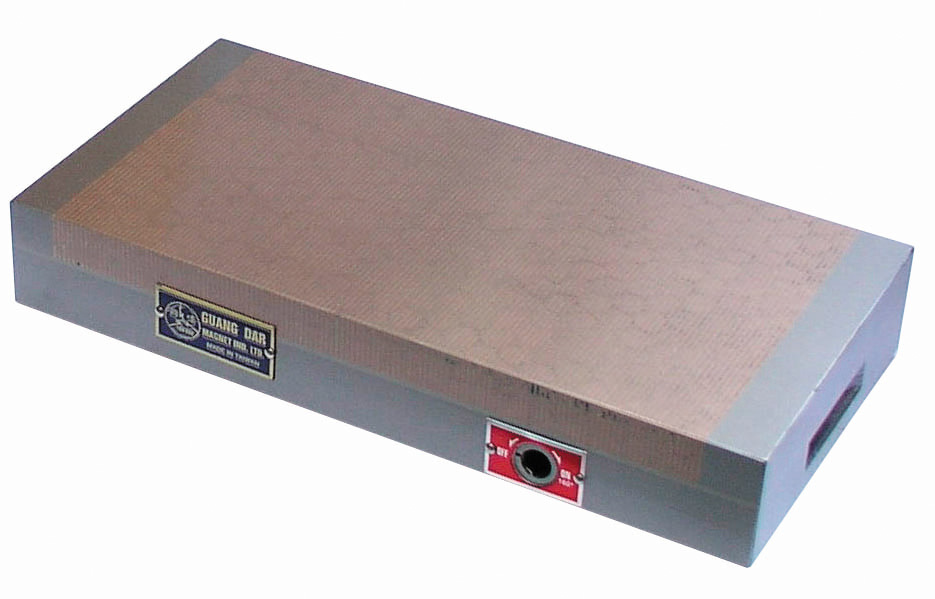

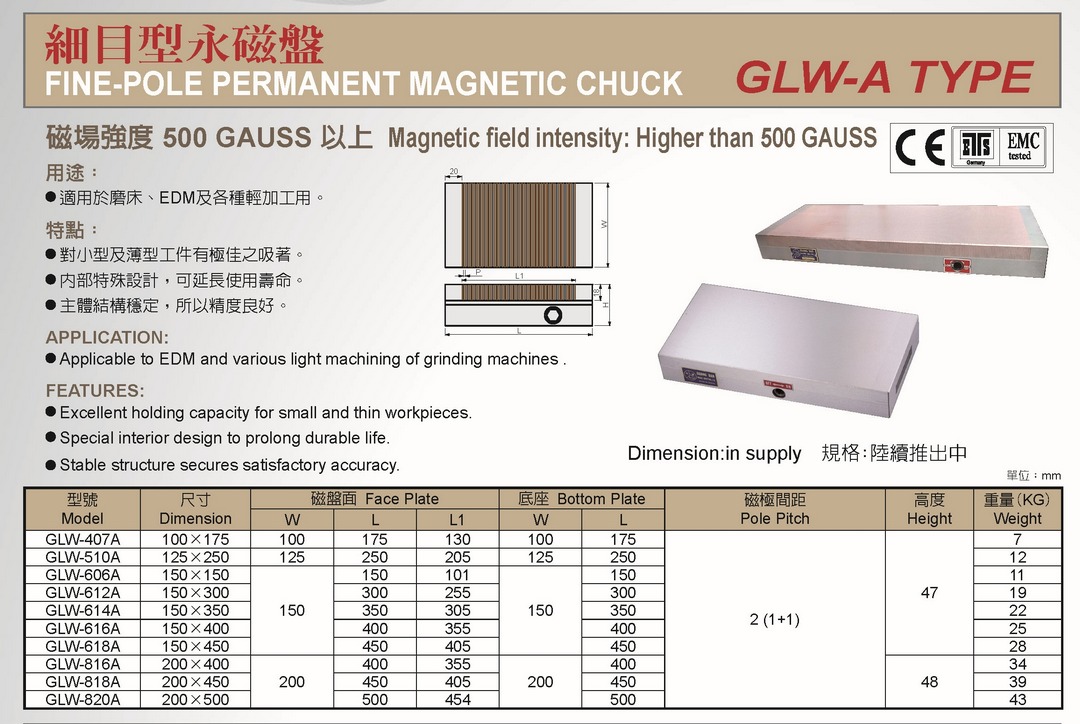

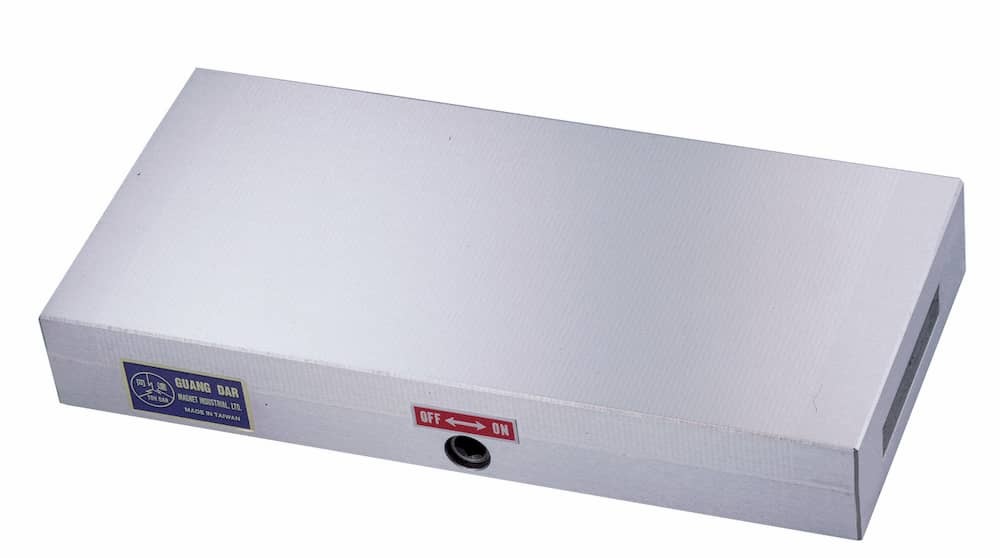

Fine-Polo Permanent Magnetic Chuck
Fine-Polo Permanent Magnetic Chuck
APPLICATION:
● Applicable to EDM and various light machining of grinding machines .
FEATURES﹕
● Excellent holding capacity for small and thin workpieces.
● Special interior design to prolong durable life.
● Stable structure secures satisfactory accuracy.
|

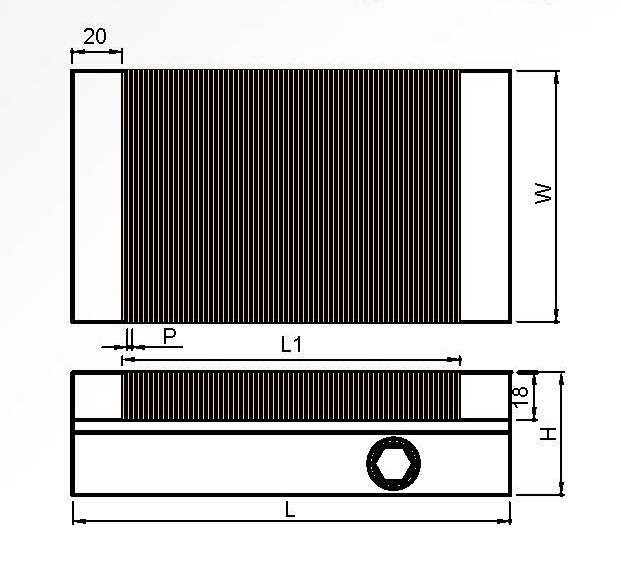

Model |
Dimension |
Face Plate |
Bottom Plate |
Pole Pitch |
Height |
Weight(KG) |
|||
|
W |
L |
L1 |
W |
L |
|||||
|
GLW-407A |
100×175 |
100 |
175 |
130 |
100 |
175 |
2 (1+1) |
47 |
7 |
|
GLW-510A |
125×250 |
125 |
250 |
205 |
125 |
250 |
12 |
||
|
GLW-606A |
150×150 |
150 |
150 |
101 |
150 |
150 |
11 |
||
|
GLW-612A |
150×300 |
300 |
255 |
300 |
19 |
||||
|
GLW-614A |
150×350 |
350 |
305 |
350 |
22 |
||||
|
GLW-616A |
150×400 |
400 |
355 |
400 |
25 |
||||
|
GLW-618A |
150×450 |
450 |
405 |
450 |
28 |
||||
|
GLW-816A |
200×400 |
200 |
400 |
355 |
200 |
400 |
48 |
34 |
|
|
GLW-818A |
200×450 |
450 |
405 |
450 |
39 |
||||
|
GLW-820A |
200×500 |
500 |
454 |
500 |
43 |
||||
