5-AXIS AIR VISE PSC-100
5-AXIS AIR VISE PSC-100
- Pneumatic centering vise
|

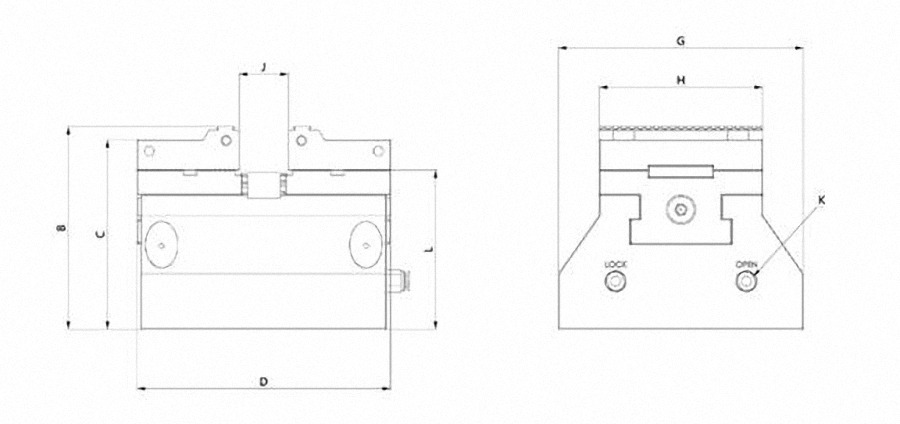

MODEL |
B |
C |
D |
G |
H |
J |
Open stroke |
K |
L |
Clamping Force |
N.W. KG |
|
PSC-100 |
124 |
116 |
155 |
150 |
100 |
10~90 |
4 |
Ø8 |
100 |
1,400kgf |
25 |
|
PSC-100A |
111.5 |
103.5 |
155 |
150 |
100 |
10~90 |
4 |
Ø8 |
87.4 |
1,400kgf |
23.5 |
Features：
Ø Pneumatic centering vise with high repeated
clamping and positioning accuracy (up to 0.01mm), suitable for precision
machining of 4-axis、5-axis CNC machine tools、indexing spacer or
precision horizontal and vertical multi-milling and cutting machining centers use.
Ø The vise body materials and parts
are made by high alloy steel. It is adjusted and hardened heat by high quality
procedures. It has high strength、high wear-resistance、high anti-tension features. The accuracy of datum plane and clamping
side is high after precision multi-machining and grinding.
Ø The heat treatment of jaw plates is
HRC45°. It can clamp hardness materials of below HRC40°.
Ø The design of jaw plates holes
for moving block. It can change and increase the needing jaw plates fast to match
the clamping demands for different machining work pieces. The clamping work
pieces will be used more diverse and flexible.
Ø The height of vise body
has fixed dimension. It can be used by many quantities of vises at the same
time.
