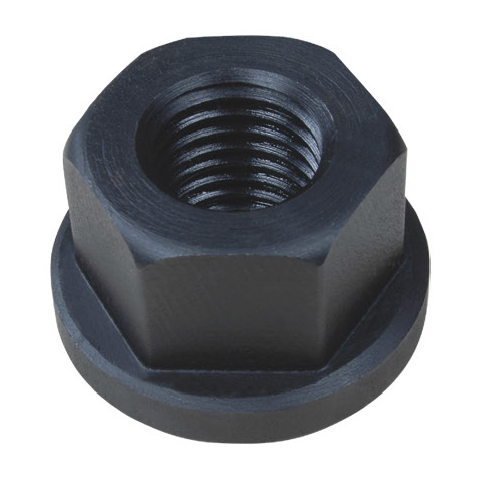

Swivel flange nut
CK-SFN Swivel flange nut
l Purpose: Combine with stud and clamp for all kind of clipping application
When tighten the nut, the flange base is fixed and prevents it from wearing.
l Material: S45C, black oxide furnished
l Heat treatment: HRC32±5°
l Product spec.:
Inch size 3/8”/1/2”/5/8”/3/4”；
Metric size M10/M12 /M14/M16/M20

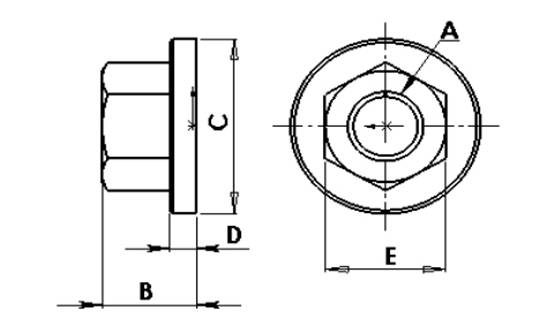

Order no.
A(Metric size)
B
C
D
E
Feature
SFM-13031S
M10X1.5
15
22
4.5
17
Swiveling flange
SFM-14041S
M12X1.75
21
28
6.5
21
SFM-14545S
M14X2.0
21
28
6.5
21
SFM-15051S
M16X2.0
23
35
6.5
26
SFM-17071S
M20X2.5
28
40
7
32
Order no.
A(Inch size)
B
C
D
E
Feature
SF-13031S
3/8"-16
15
22
4.5
17
Swiveling flange
SF-14041S
1/2"-12
21
28
6.5
21
SF-15051S
5/8"-11
23
35
6.5
26
SF-17071S
3/4"-10
28
40
7
32
|
Order no. |
A(Metric size) |
B |
C |
D |
E |
Feature |
|
SFM-13031S |
M10X1.5 |
15 |
22 |
4.5 |
17 |
Swiveling flange |
|
SFM-14041S |
M12X1.75 |
21 |
28 |
6.5 |
21 |
|
|
SFM-14545S |
M14X2.0 |
21 |
28 |
6.5 |
21 |
|
|
SFM-15051S |
M16X2.0 |
23 |
35 |
6.5 |
26 |
|
|
SFM-17071S |
M20X2.5 |
28 |
40 |
7 |
32 |
|
Order no. |
A(Inch size) |
B |
C |
D |
E |
Feature |
|
SF-13031S |
3/8"-16 |
15 |
22 |
4.5 |
17 |
Swiveling flange |
|
SF-14041S |
1/2"-12 |
21 |
28 |
6.5 |
21 |
|
|
SF-15051S |
5/8"-11 |
23 |
35 |
6.5 |
26 |
|
|
SF-17071S |
3/4"-10 |
28 |
40 |
7 |
32 |
