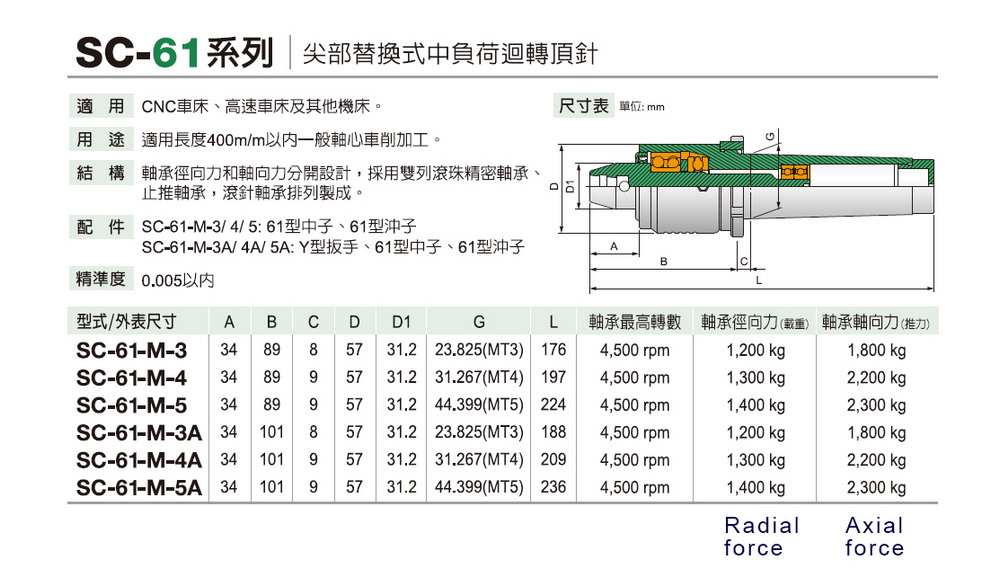

SC-61  Replaceable Midium-Load Live Center

Applicable to: CNC lathes, high-speed lathes and other machine tools.

Application: Suitable for general axis turning within 400m/m in length.

Structure: The radial force and the axial force of the bearing are designed separately, and the double row ball precision bearing, thrust bearing and needle roller bearing are arranged in an arrangement.

Accessories: SC-61-M-3/ 4/ 5: Type 61 middle punch, Type 61 punch
        SC-61-M-3A/ 4A/ 5A: Y-type wrench, 61-type middle punch, 61-type punch

Accuracy: within 0.005
