CARBIDE TIPPED ROUGHING END MILL

CARBIDE TIPPED ROUGHING END MILL
Model : AISC

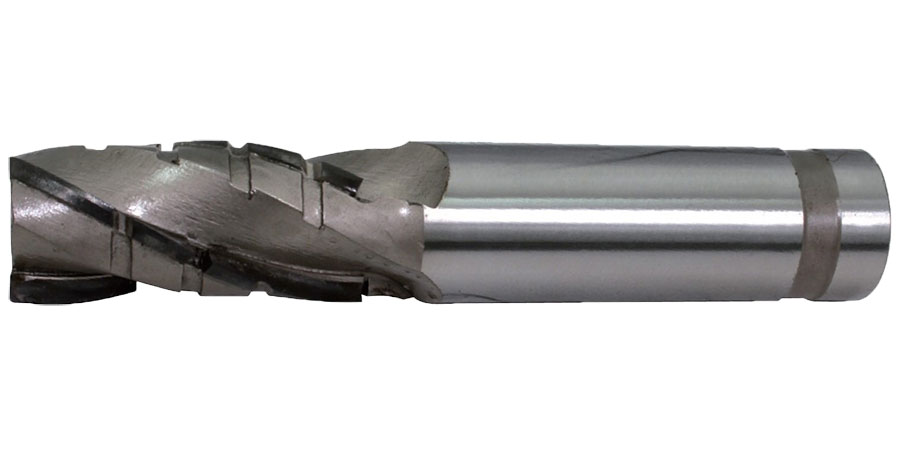

CARBIDE TIPPED ROUGHING END MILL


Roughing End Mill is welded with carbide flutes and suitable for heaving milling with good chip release, excellent cutting ability and high metal cutting rate

cutting tools are applicable for all kinds of heavy milling processing such as Machine Processing Industries, Metal Mold Industries, Automotive & Automotive Accessories Industries..etc. With skillful technology and high-quality of tungsten material as well as strict surveillance of manufacturing and welding

Standard

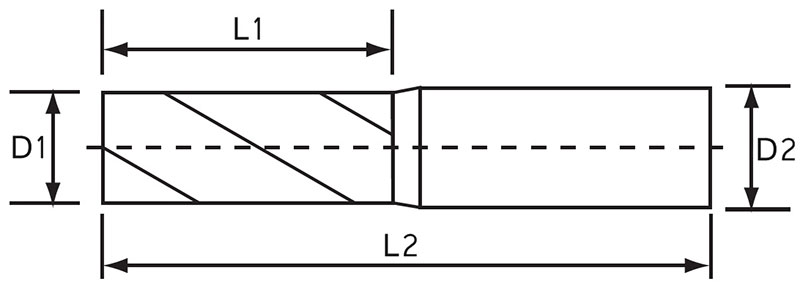

PART NO. DIAMETER (D1) FLUTE LENGTH (L1) FLUTE SHANK DIAMETER (D2) OVERALL LENGTH (L2)
AISC20-050-3C 20 50 3 20 130
AISC25-050-4C 25 50 4 25 135
AISC30-050-4C 30 50 4 32 135
AISC32-050-4C 32 50 4 32 135
AISC35-050-4C 35 50 4 32 135
AISC40-050-4C 40 50 4 32 135
AISC50-050-6C 50 50 6 42 135

Long Flute

PART NO. DIAMETER (D1) FLUTE LENGTH (L1) FLUTE SHANK DIAMETER (D2) OVERALL LENGTH (L2)
AISC20-065-3C 20 65 3 20 140
AISC20-075-3C 20 75 3 20 160
AISC25-075-4C 25 75 4 25 160
AISC25-100-4C 25 100 4 25 200
AISC25-125-4C 25 125 4 25 225
AISC28-075-4C 28 75 4 25 160
AISC30-075-4C 30 75 4 32 160
AISC30-100-4C 30 100 4 32 200
AISC30-125-4C 30 125 4 32 225
AISC30-150-4C 30 150 4 32 250
AISC32-075-4C 32 75 4 32 160
AISC32-100-4C 32 100 4 32 200
AISC32-125-4C 32 125 4 32 225
AISC32-150-4C 32 150 4 32 250
AISC35-075-4C 35 75 4 32 160
AISC35-100-4C 35 100 4 32 200
AISC35-125-4C 35 125 4 32 225
AISC35-150-4C 35 150 4 32 250
AISC40-075-4C 40 75 4 42 160
AISC40-100-4C 40 100 4 42 200
AISC40-125-4C 40 125 4 42 225
AISC40-150-4C 40 150 4 42 250
AISC40-200-4C 40 200 4 42 300
AISC50-075-6C 50 75 6 42 180
AISC50-100-6C 50 100 6 42 200
AISC50-125-6C 50 125 6 42 225
AISC50-150-6C 50 150 6 42 250
AISC50-200-6C 50 200 6 50.8 300
AISC50-250-6C 50 250 6 50.8 350
