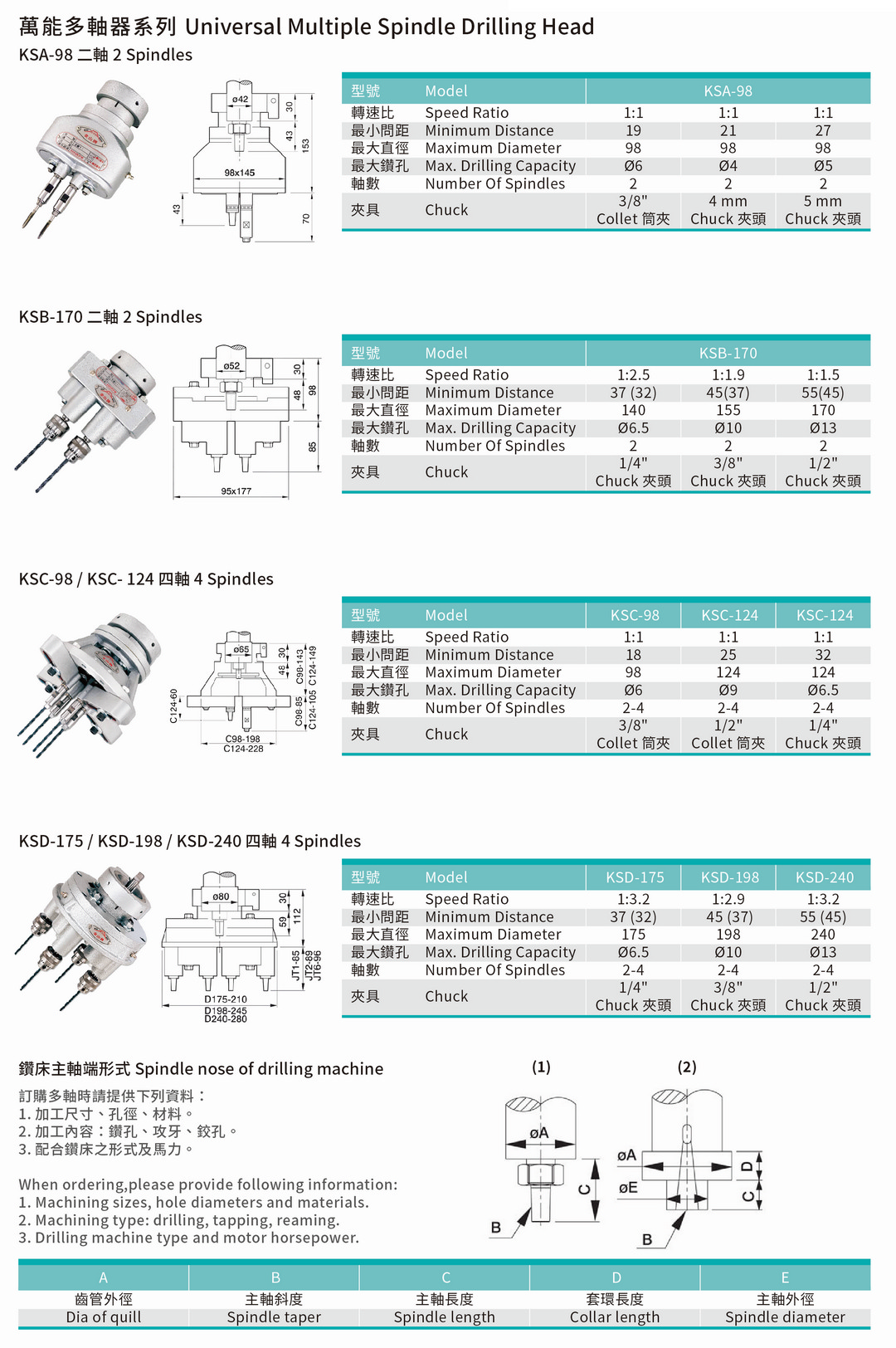

Multiple Spindle Machine Head
Model :
KSA-98 KSB-170 KSC-98 KSC-124 KSD-175 KSD198 KSD-240

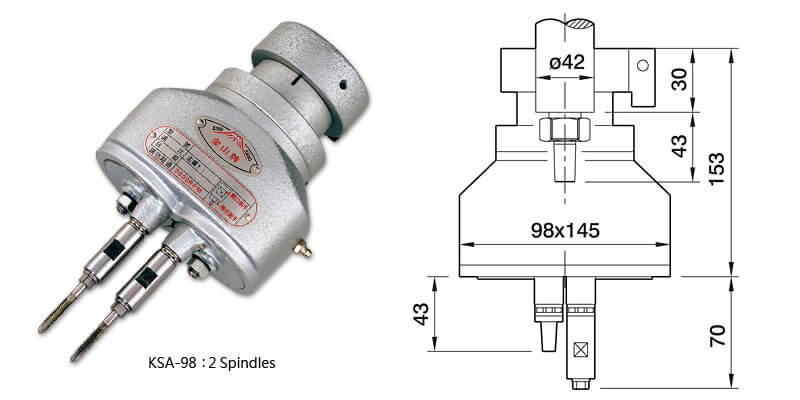

KSA-98 : 2 Spindles Multiple Spindle Head
| MODEL | KSA-98 | ||
| Speed ratio | 1:1 | 1:1 | 1:1 |
|---|---|---|---|
| Minimum distance | 19 | 21 | 27 |
| Maximum diameter | 98 | 98 | 98 |
| Max. drilling capacity | Ø6 | Ø4 | Ø5 |
| Number of spindles | 2 | 2 | 2 |
| Chuck | 3/8" Collet | 4mm Chuck | 5mm Chuck |

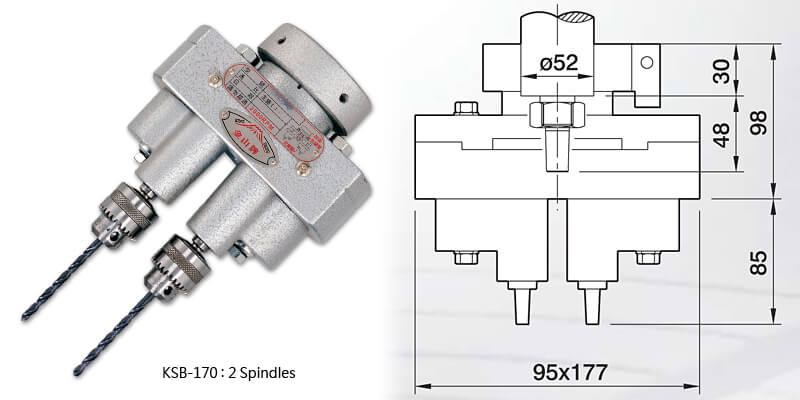

KSB-170 : 2 Spindles Multiple Spindle Head
| MODEL | KSB-170 | ||
| Speed ratio | 1:2.5 | 1:1.9 | 1:1.5 |
|---|---|---|---|
| Minimum distance | 37(32) | 45(37) | 55(45) |
| Maximum diameter | 140 | 155 | 170 |
| Max. drilling capacity | Ø6.5 | Ø10 | Ø13 |
| Number of spindles | 2 | 2 | 2 |
| Chuck | 1/4" Chuck | 3/8" Chuck | 1/2" Chuck |

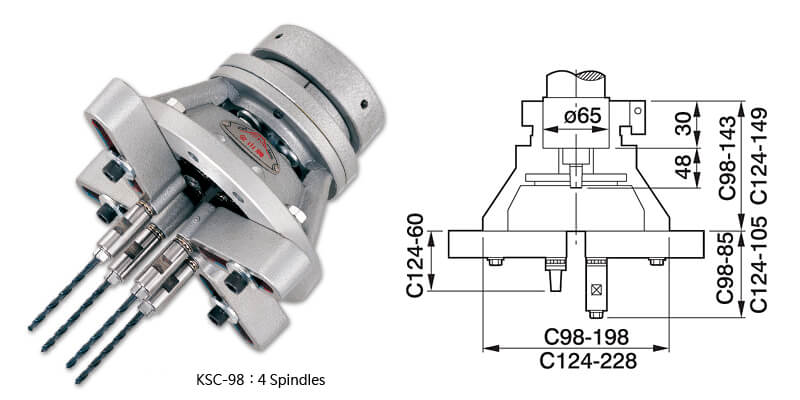

KSC-98 / KSC-124 : 4 Spindles Multiple Spindle Head
| MODEL | KSC-98 | KSC-124 | KSC-124 |
| Speed ratio | 1:1 | 1:1 | 1:1 |
|---|---|---|---|
| Minimum distance | 18 | 25 | 32 |
| Maximum diameter | 98 | 124 | 124 |
| Max. drilling capacity | Ø6 | Ø9 | Ø6.5 |
| Number of spindles | 2-4 | 2-4 | 2-4 |
| Chuck | 3/8" Collet | 1/2" Collet | 1/4" Chuck |

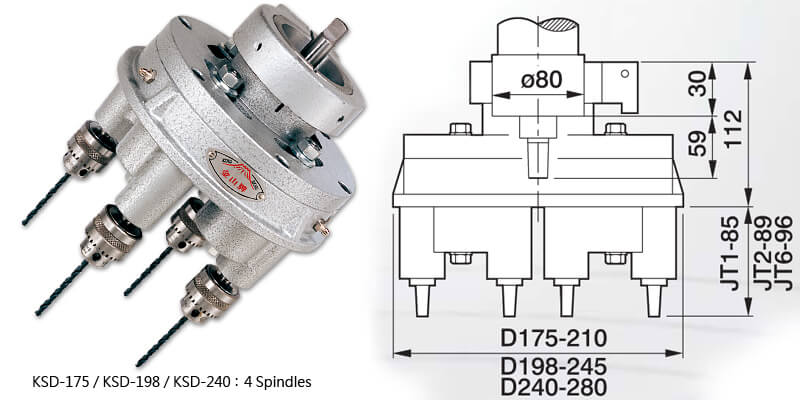

KSD-175 / KSD-198 / KSD-240 : 4 Spindles Multiple Spindle Head
| MODEL | KSD-175 | KSD-198 | KSD-240 |
| Speed ratio | 1:3.2 | 1:2.9 | 1:3.2 |
|---|---|---|---|
| Minimum distance | 37(32) | 45(37) | 55(45) |
| Maximum diameter | 175 | 198 | 240 |
| Max. drilling capacity | Ø6.5 | Ø10 | Ø13 |
| Number of spindles | 2-4 | 2-4 | 2-4 |
| Chuck | 1/4" Chuck | 3/8" Chuck | 1/2" Chuck |

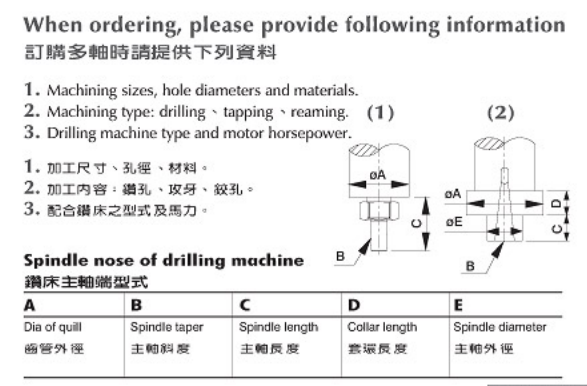

Hexangular collets and chucks and other accessories are not included for the above machine products
