• Non through-hole rotary hydraulic cylinder

Non through-hole rotary hydraulic cylinder


MH 中實迴轉油壓缸Non through-hole rotary hydraulic cylinder



l          Compact, low inertla, light weight cylinder :
Manufuctured by aluminium alloy, this cylinder is light weight design to reduce the loading of spindle.

l          High speed :
This balanced design cylinder is light weight, compact and maintains outstanding stability during high speed operation.

l          Long life :
High quality cylinder seals and high accuracy surface finish on components to ensure the long life of these cylinders.



SPEC
Model

Piston
Dia.
(mm)

Piston Area
(cm2)
Push Side / Pull Side

Max. Draw Bar Force
KN(kgf)
Push Side / Pull Side

Piston
Stroke
(mm)

Max.
Operating
Pressure
MPa
(kgf / cm2)

Max.
Speed
(r.p.m.)

Moment
Of Inertia
I
(kg
m2 )

Weight
(kg)

Total
Leakage
L/min

MH80

80

47.7 / 42.8

15.5(1580) / 13.9(1417)

15

3.5(35.7)

6000

0.005

5.1

0.4

MH100

100

75.4 / 70.5

24.5(2498) / 22.9(2335)

20

3.5(35.7)

5500

0.0125

6.6

0.4

MH125

125

121.1 / 114

39.3(4007) / 37(3773)

25

3.5(35.7)

5500

0.02

8.4

0.4

MH150

150

176 / 160

66(6730) / 60(6118)

30

4.0(40.8)

4000

0.047

10.4

0.8

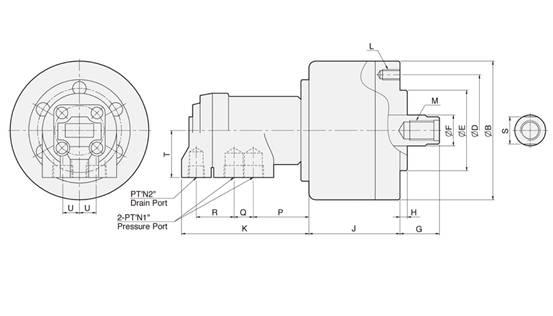

DIM
Model

B

D

E
(h7)

F

G
max.

G
min.

H

J

K

L

M

N1

N2

P

Q

R

T

U

S

MH80

112

90

65

25

45

30

6

73.5

103

6-M8x16

M16x2.0x32

3/8"

1/4"

45

15.5

30.5

38

13.5

22

MH100

135

100

80

25

45

25

6

88.5

103

6-M10x19

M16x2.0x32

3/8"

1/4"

45

15.5

30.5

38

13.5

22

MH125

160

130

110

30

51

26

6

95.5

103

6-M12x20

M20x2.5x32

3/8"

1/4"

45

15.5

30.5

38

13.5

27

MH150

190

130

110

45

50

20

6

107

103

12-M12x20

M30x3.5x40

3/8"

1/4"

45

15.5

30.5

38

13.5

38
