CARBIDE TIPPED CYLINDRICAL DOVETAIL MILLING CUTTER
Model :
AATD
CARBIDE TIPPED CYLINDRICAL DOVETAIL MILLING CUTTER
Cylindrical Dovetail Milling Cutter is welded with carbide teeth to mill dovetail T-slot shape and suitable for milling the angle in the groove and clearing the chip.

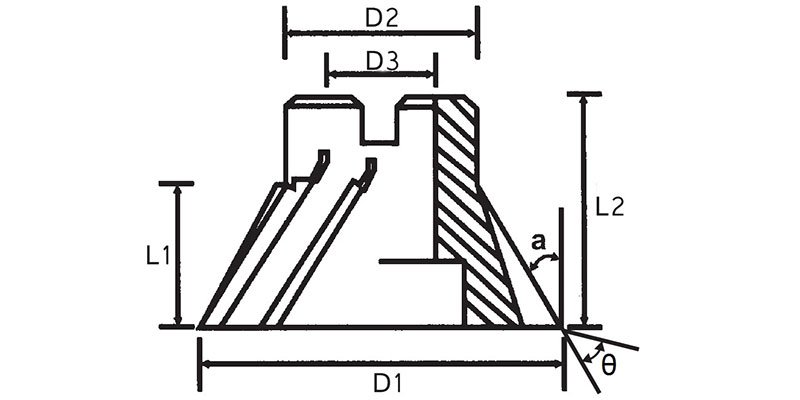

| PART NO. | DIAMETER (D1) | ANGLE (Θ) | FLUTE LENGTH (L1) | FLUTE | CONNECTING DIAMETER (D2) | BORE DIAMETER (D3) | OVERALL LENGTH (L2) |
|---|---|---|---|---|---|---|---|
| AATD45-075 | 75 | 45 | 13.5 | 8 | 46 | 25.4 | 50 |
| AATD45-100 | 100 | 45 | 21.5 | 10 | 55 | 31.75 | 50 |
| AATD45-125 | 125 | 45 | 31.5 | 12 | 60 | 31.75 | 50 |
| AATD50-075 | 75 | 50 | 17 | 8 | 45 | 25.4 | 55 |
| AATD50-100 | 100 | 50 | 26 | 10 | 55 | 31.75 | 50 |
| AATD50-125 | 125 | 50 | 38 | 12 | 60 | 31.75 | 58 |
| AATD55-075 | 75 | 55 | 20 | 8 | 45 | 25.4 | 55 |
| AATD55-100 | 100 | 55 | 31 | 10 | 55 | 31.75 | 50 |
| AATD55-125 | 125 | 55 | 45 | 12 | 60 | 31.75 | 65 |
| AATD60-075 | 75 | 60 | 24 | 8 | 45 | 25.4 | 50 |
| AATD60-100 | 100 | 60 | 37 | 10 | 55 | 31.75 | 60 |
| AATD60-125 | 125 | 60 | 54 | 12 | 60 | 31.75 | 80 |
| AATD60-150 | 150 | 60 | 71 | 14 | 68 | 31.75 | 93 |
