CARBIDE TIPPED CYLINDRICAL FINISHING MILLING CUTTER

CARBIDE TIPPED CYLINDRICAL FINISHING MILLING CUTTER

Cylindrical Finishing Milling Cutter is welded with carbide flutes and suitable for side milling of large workpieces with better rigidity.

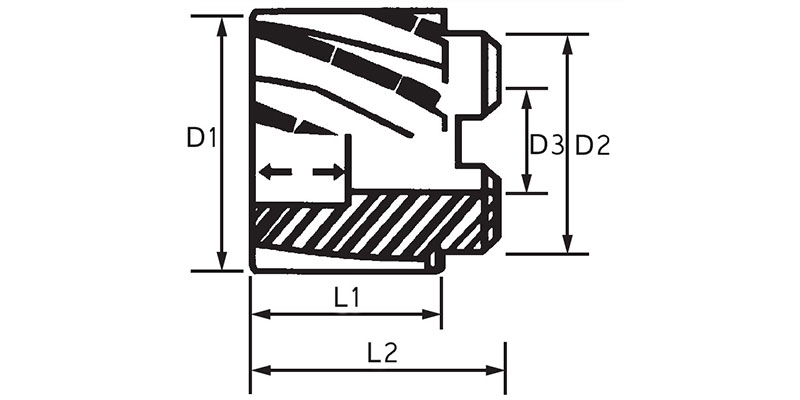

PART NO.	DIAMETER (D1)	FLUTE LENGTH (L1)	FLUTE	CONNECTING DIAMETER (D2)	BORE DIAMETER (D3)	OVERALL LENGTH (L2)
AUTA50-50	50	50	6	-	25.4	70
AUTA50-75	50	75	6	-	25.4	95
AUTA50-100	50	100	6	-	25.4	120
AUTA60-50	60	50	6	55	31.75	65
AUTA60-75	60	75	6	55	31.75	90
AUTA60-100	60	100	6	55	31.75	115
AUTA75-50	75	50	8	60	31.75	65
AUTA75-75	75	75	8	60	31.75	90
AUTA75-100	75	100	8	60	31.75	115
AUTA75-125	75	125	8	60	31.75	140
AUTA80-50	80	50	8	60	31.75	65
AUTA80-80	80	80	8	60	31.75	95
