QUICK JAW VISE
CC-103 QUICK JAW VISE
|

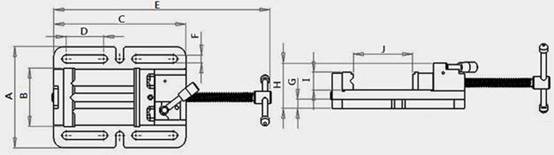

MODEL |
A |
B |
C |
D |
E |
F |
G |
H |
I |
|
CC-103-4 |
180 |
104 |
235 |
66.5 |
390 |
14 |
16.5 |
73 |
32 |
|
CC-103-6 |
240 |
156 |
310 |
85 |
530 |
17 |
18 |
93 |
38 |
|
MODEL |
J |
Clamping Force (TON) |
KG |
|
CC-103-4 |
105 |
1.0 |
6.5 |
|
CC-103-6 |
152 |
1.8 |
12.2 |
Feature：
l Suitable for clamping work piece on drill press machine & milling machine.
l Designed with solid structure, main body is made of FC15, assemble a pair of heat treated steel jaws with hardness HRC 45°~50°.
l Jaw pair and handle are surface treated by black oxide finish.
l Front fixed prismatic jaw with cross V-grooves is designed for clamping work piece firmly in both vertical & horizontal directions.
