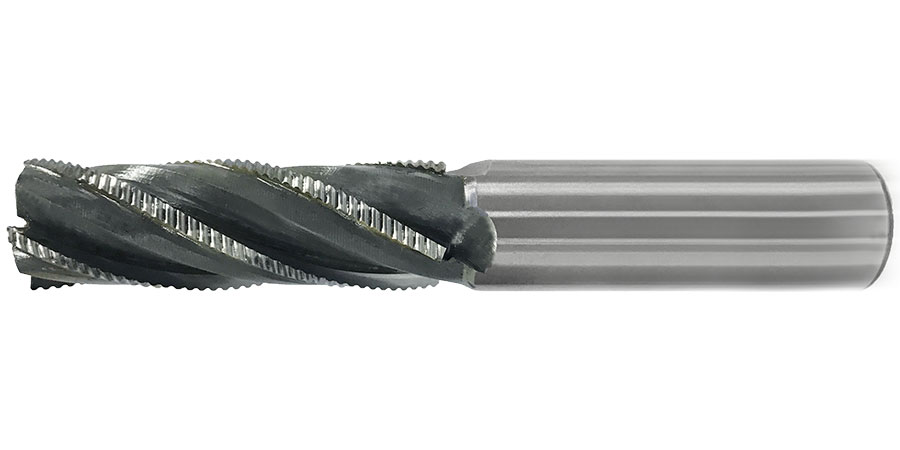

CARBIDE TIPPED ROUGHING END MILL (REAR WAVY EDGED FLUTE)

Roughing End Mill (Rear Wavy Edged Flute) is welded with carbide flutes, which the chip-release gap is bigger than Roughing End Mill for releasing the chip greatly to save the processing time and extend the life cycle.

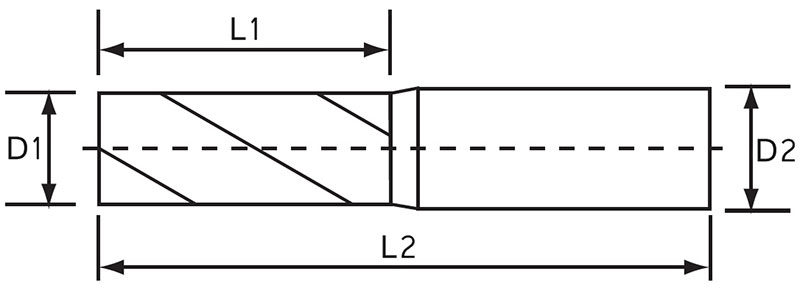

PART NO.	DIAMETER (D1)	FLUTE LENGTH (L1)	FLUTE	SHANK DIAMETER (D2)	OVERALL LENGTH (L2)
AITD16-030-3C	16	30	3	16	120
AITD16-050-4C	16	50	4	16	135
AITD20-050-4C	20	50	4	20	135
AITD20-075-4C	20	75	4	20	155
AITD25-050-4C	25	50	4	25	135
AITD25-050-5C	25	50	5	25	135
AITD25-075-4C	25	75	4	25	155
AITD25-100-5C	25	100	5	25	175
AITD30-050-4C	30	50	4	32	130
AITD30-075-4C	30	75	4	32	175
AITD30-100-5C	30	100	5	32	175
AITD32-050-4C	32	50	4	32	135
AITD32-075-4C	32	75	4	32	160
AITD35-050-4C	35	50	4	32	135
AITD35-075-4C	35	75	4	32	160
AITD35-100-4C	35	100	4	32	200
