CARBIDE TIPPED CONCAVE HALF-CIRCLE SIDE MILLING CUTTER

Model : AHTR

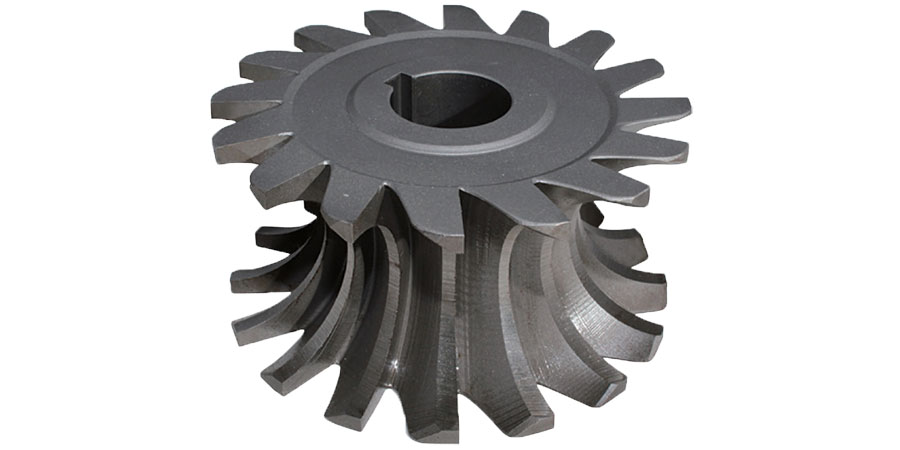

CARBIDE TIPPED CONCAVE HALF-CIRCLE SIDE MILLING CUTTER



Concave Half-Circle Side Milling Cutter is welded with the carbide teeth and suitable for milling the sharp corner and half-circle convex shape.

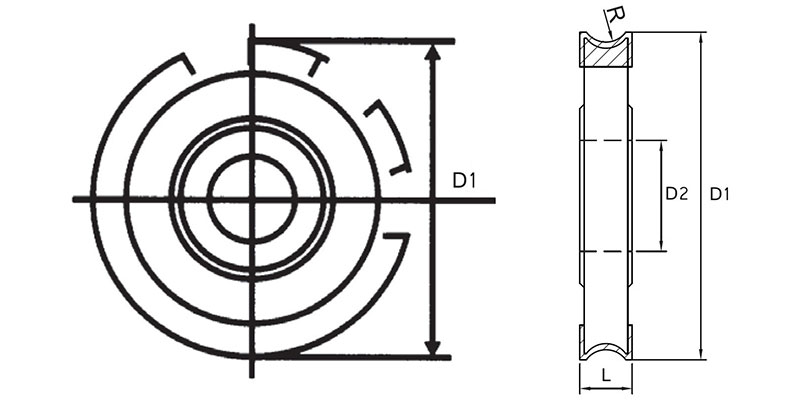

PART NO. DIAMETER (D1) FLUTE LENGTH (L1) CORNER RADIUS (R) FLUTE BORE DIAMETER (D2)
AHTR100-12-3R 100 12 3R 16 25.4
AHTR100-18-4R 100 18 4R 16 25.4
AHTR100-20-5R 100 20 5R 16 25.4
AHTR100-22-6R 100 22 6R 16 25.4
