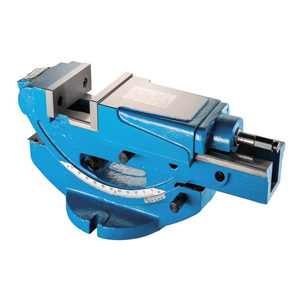

TILTING HYDRAULIC MACHINE VISE
HPT - TILTING HYDRAULIC MACHINE VISE
|

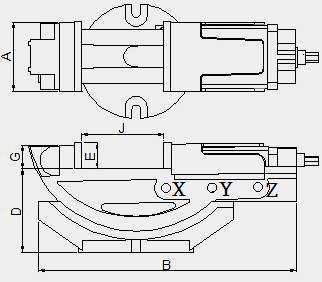

MODEL |
A |
B |
D |
E |
G |
Opening J |
Clamping force kgf |
Weight KG |
||
|
X |
Y |
Z |
||||||||
|
HPT-4" |
105 |
395 |
163 |
36 |
34 |
0-60 |
60-110 |
110-170 |
3500 |
26 |
|
HPT-6" |
150 |
560 |
250 |
53 |
52 |
0-100 |
100-200 |
200-300 |
4500 |
71 |
Features：
l The adjustable vise according to the different needs of the processing point of view, vertical angle0° to 45° can be freely adjusted˚, freely adjusted accurately characterize the degree to ensureaccuracy.
l The new patented hydraulic cylinder with the clamping force is more stable and can resist vibrationmachines, the possessed easy removal and maintenance of the function, it's economical and durable .
l Vise body material is high ductility of cast iron, vise both sides of the slide hardened heat (HRC45°), ensure high precision and high wear resistance, high tensile strength.
