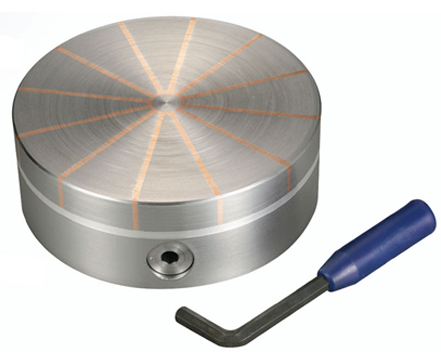

Powerful Round Star-Pole Permanent Magnetic Chuck
Powerful Round Star-Pole Permanent Magnetic Chuck
● suitable for milling and grinding on lathes、cylindrical grinders、rotary grinders.
Features:
● Average holding power, no weak magnetism point, stable accuracy, no deformation, durable, good waterproof performance, Magnetic strength can be adjusted.
● Can be drilled at a center, adding fixture to increase the holding power.
● Or using induction block to increase the height of workpiece to process easily.

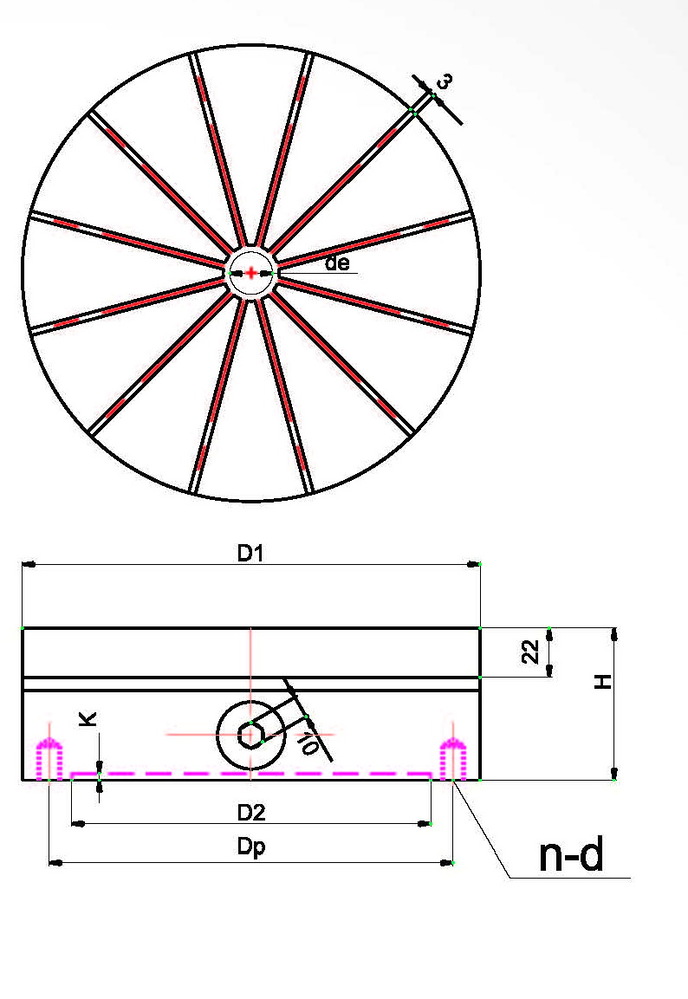

Model
Face Plate
Pole Pitch
Bottom Plate
Height
Weight
D1
de
P1
D2
k
n
d
Dp
(H)
(KG)
GLC-04S
104
16
8
60
4
M6
4
80
63
4.2
GLC-05S
130
12
80
4
M8
4
112
6.6
GLC-06S
162
125
4
M8
4
140
10.2
GLC-08S
202
19
160
4
M8
4
178
68
17.1
GLC-10S
250
200
4
M10
4
224
26.2
GLC-13S
320
16
250
4
M10
4
280
43.2
GLC-14S
360
280
4
M12
4
320
55
GLC-16S
400
315
4
M12
4
355
67
