CARBIDE TIPPED STAGGERED TOOTH SIDE MILLING CUTTER (CHIDORI TOOTH)
Model :
AHTX
CARBIDE TIPPED STAGGERED TOOTH SIDE MILLING CUTTER (CHIDORI TOOTH)

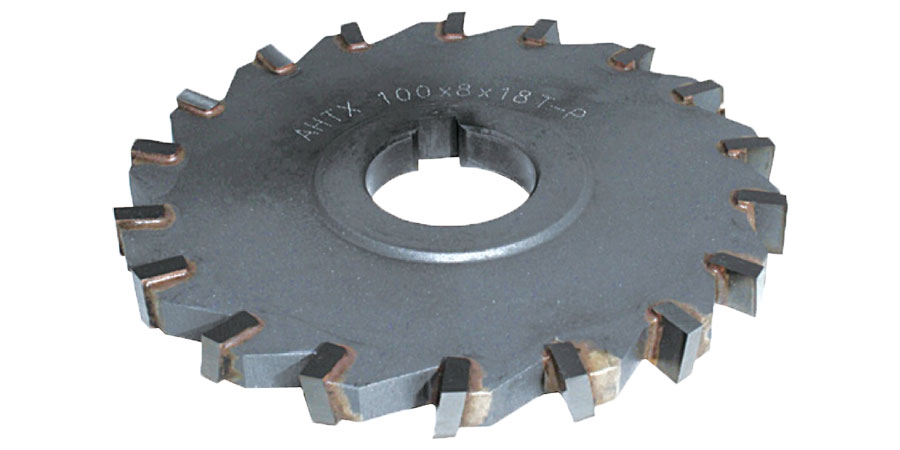

Staggered Tooth Side Milling Cutter (Chidori Tooth) is welded with carbide teeth and has the shape & function as the face milling cutter; the side of tooth also has the cutting function to mill the face & side surface simultaneously; it is staggered tooth (Chidori Tooth) so the chip loading is lower than Straight Tooth T-Slot End Mill to reduce the cutting obstruction & vibration, milling more effectively. It is suitable for heavy milling and is often used for high speed and deep feed milling of slot.

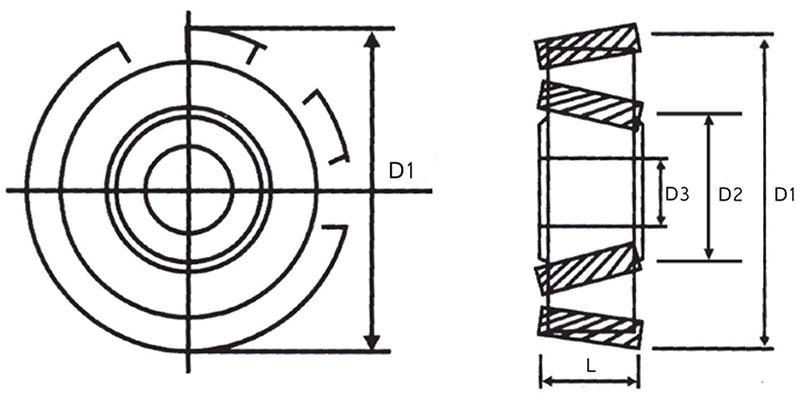

| PART NO. | DIAMETER (D1) | FLUTE LENGTH (L) | FLUTE | CONNECTING DIAMETER (D2) | BORE DIAMETER (D3) |
|---|---|---|---|---|---|
| AHTX075-03K | 75 | 3 | 16 | 40 | 25.4 |
| AHTX075-04K | 75 | 4 | 16 | 40 | 25.4 |
| AHTX075-05K | 75 | 5 | 16 | 40 | 25.4 |
| AHTX075-06K | 75 | 6 | 16 | 40 | 25.4 |
| AHTX075-07K | 75 | 7 | 16 | 40 | 25.4 |
| AHTX075-08K | 75 | 8 | 16 | 40 | 25.4 |
| AHTX075-09K | 75 | 9 | 16 | 40 | 25.4 |
| AHTX075-10K | 75 | 10 | 16 | 40 | 25.4 |
| AHTX075-11K | 75 | 11 | 16 | 40 | 25.4 |
| AHTX075-12K | 75 | 12 | 16 | 40 | 25.4 |
| AHTX075-13K | 75 | 13 | 14 | 40 | 25.4 |
| AHTX075-14K | 75 | 14 | 14 | 40 | 25.4 |
| AHTX075-15K | 75 | 15 | 14 | 40 | 25.4 |
| AHTX075-16K | 75 | 16 | 14 | 40 | 25.4 |
| AHTX100-03K | 100 | 3 | 18 | 40 | 25.4 |
| AHTX100-04K | 100 | 4 | 18 | 40 | 25.4 |
| AHTX100-05K | 100 | 5 | 18 | 40 | 25.4 |
| AHTX100-06K | 100 | 6 | 18 | 40 | 25.4 |
| AHTX100-07K | 100 | 7 | 18 | 40 | 25.4 |
| AHTX100-08K | 100 | 8 | 18 | 40 | 25.4 |
| AHTX100-09K | 100 | 9 | 18 | 40 | 25.4 |
| AHTX100-10K | 100 | 10 | 18 | 40 | 25.4 |
| AHTX100-11K | 100 | 11 | 18 | 40 | 25.4 |
| AHTX100-12K | 100 | 12 | 18 | 40 | 25.4 |
| AHTX100-13K | 100 | 13 | 16 | 40 | 25.4 |
| AHTX100-14K | 100 | 14 | 16 | 40 | 25.4 |
| AHTX100-15K | 100 | 15 | 16 | 40 | 25.4 |
| AHTX100-16K | 100 | 16 | 16 | 40 | 25.4 |
| AHTX100-20K | 100 | 20 | 16 | 40 | 25.4 |
| AHTX125-03K | 125 | 3 | 20 | 40 | 25.4 |
| AHTX125-04K | 125 | 4 | 20 | 40 | 25.4 |
| AHTX125-05K | 125 | 5 | 20 | 40 | 25.4 |
| AHTX125-06K | 125 | 6 | 20 | 40 | 25.4 |
| AHTX125-07K | 125 | 7 | 20 | 40 | 25.4 |
| AHTX125-08K | 125 | 8 | 20 | 40 | 25.4 |
| AHTX125-09K | 125 | 9 | 20 | 40 | 25.4 |
| AHTX125-10K | 125 | 10 | 20 | 40 | 25.4 |
| AHTX125-11K | 125 | 11 | 20 | 40 | 25.4 |
| AHTX125-12K | 125 | 12 | 20 | 40 | 25.4 |
| AHTX125-13K | 125 | 13 | 20 | 40 | 25.4 |
| AHTX125-14K | 125 | 14 | 20 | 40 | 25.4 |
| AHTX125-15K | 125 | 15 | 20 | 40 | 25.4 |
| AHTX125-16K | 125 | 16 | 18 | 40 | 25.4 |
| AHTX125-18K | 125 | 18 | 18 | 40 | 25.4 |
| AHTX125-20K | 125 | 20 | 18 | 40 | 25.4 |
| AHTX150-03K | 150 | 3 | 22 | 40 | 25.4 |
| AHTX150-04K | 150 | 4 | 22 | 40 | 25.4 |
| AHTX150-05K | 150 | 5 | 22 | 40 | 25.4 |
| AHTX150-06K | 150 | 6 | 22 | 40 | 25.4 |
| AHTX150-07K | 150 | 7 | 22 | 40 | 25.4 |
| AHTX150-08K | 150 | 8 | 22 | 40 | 25.4 |
| AHTX150-09K | 150 | 9 | 22 | 40 | 25.4 |
| AHTX150-10K | 150 | 10 | 22 | 40 | 25.4 |
| AHTX150-11K | 150 | 11 | 22 | 40 | 25.4 |
| AHTX150-12K | 150 | 12 | 22 | 40 | 25.4 |
| AHTX150-13K | 150 | 13 | 22 | 40 | 25.4 |
| AHTX150-14K | 150 | 14 | 22 | 40 | 25.4 |
| AHTX150-15K | 150 | 15 | 22 | 40 | 25.4 |
| AHTX150-16K | 150 | 16 | 20 | 40 | 25.4 |
| AHTX150-20K | 150 | 20 | 20 | 40 | 25.4 |
| AHTX175-06K | 175 | 6 | 24 | 50 | 25.4 |
| AHTX175-08K | 175 | 8 | 24 | 50 | 25.4 |
| AHTX175-10K | 175 | 10 | 24 | 50 | 25.4 |
| AHTX175-12K | 175 | 12 | 24 | 50 | 25.4 |
| AHTX200-03K | 200 | 3 | 28 | 50 | 25.4 |
| AHTX200-04K | 200 | 4 | 28 | 50 | 25.4 |
| AHTX200-05K | 200 | 5 | 28 | 50 | 25.4 |
| AHTX200-06K | 200 | 6 | 28 | 50 | 25.4 |
| AHTX200-07K | 200 | 7 | 28 | 50 | 25.4 |
| AHTX200-08K | 200 | 8 | 28 | 50 | 25.4 |
| AHTX200-09K | 200 | 9 | 28 | 50 | 25.4 |
| AHTX200-10K | 200 | 10 | 28 | 50 | 25.4 |
| AHTX200-11K | 200 | 11 | 28 | 50 | 25.4 |
| AHTX200-12K | 200 | 12 | 28 | 50 | 25.4 |
| AHTX200-13K | 200 | 13 | 28 | 50 | 25.4 |
| AHTX200-14K | 200 | 14 | 28 | 50 | 25.4 |
| AHTX200-15K | 200 | 15 | 28 | 50 | 25.4 |
| AHTX200-16K | 200 | 16 | 28 | 50 | 25.4 |
