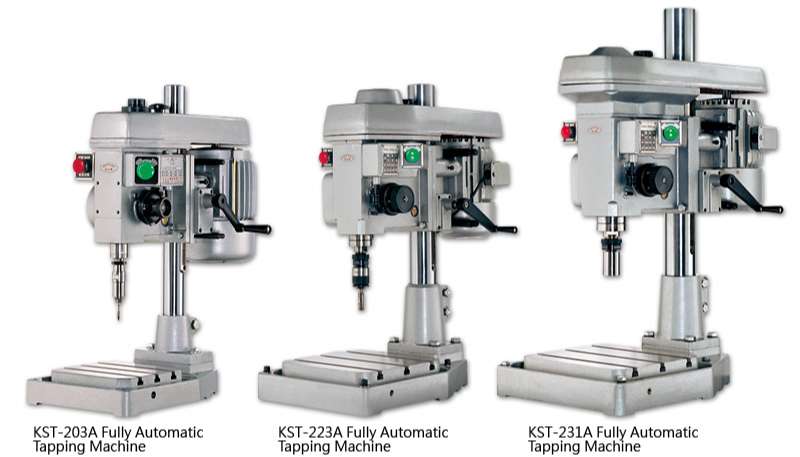

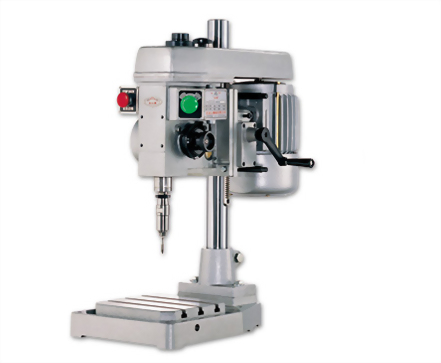

Gear Type Fully Automatic Tapping Machine
Gear Type Fully Automatic Tapping Machine

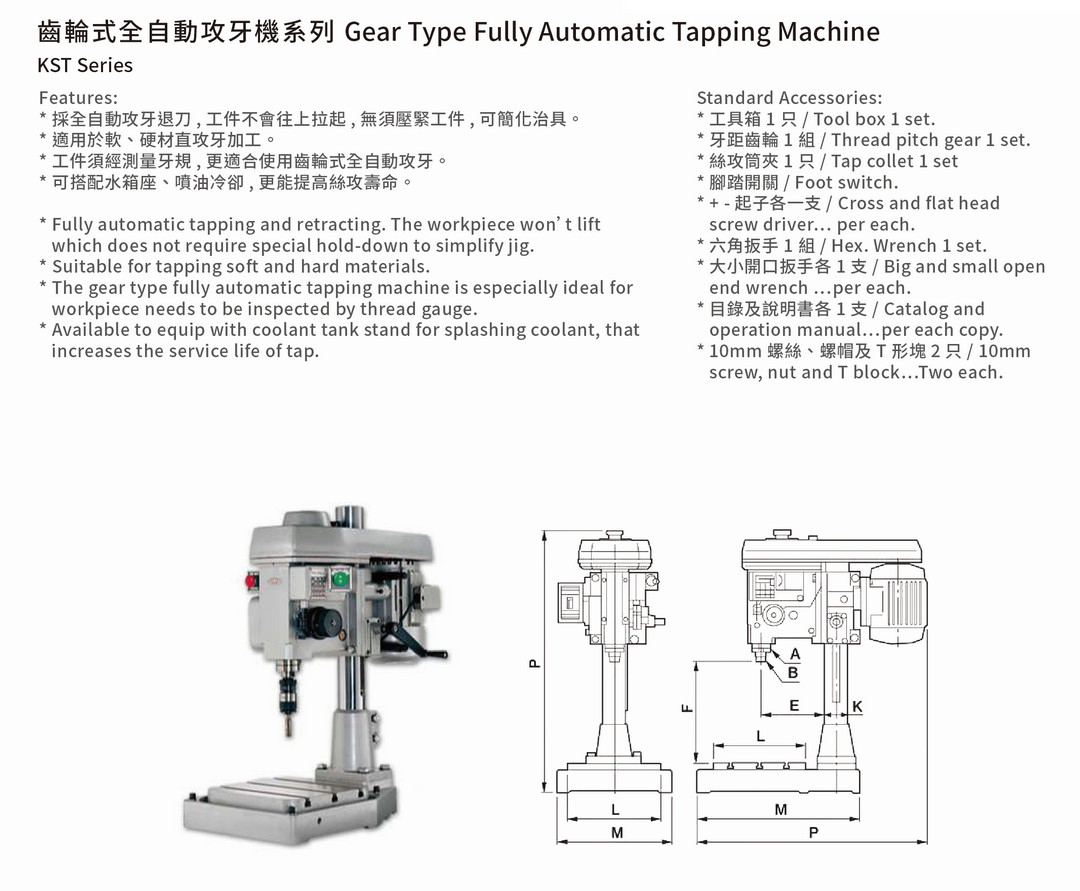

FEATURES
- Fully automatic tapping and retracting. The workpiece won't lift, which does not require special hold-down to simplify jig.
- Suitable for tapping soft and hard materials.
- The gear type fully automatic tapping machine is especially ideal for workpiece needs to be inspected by thread gauge.
- Available to equip with coolant tank stand optional parts for splashing coolant, that increases the service life of tap.
|
|

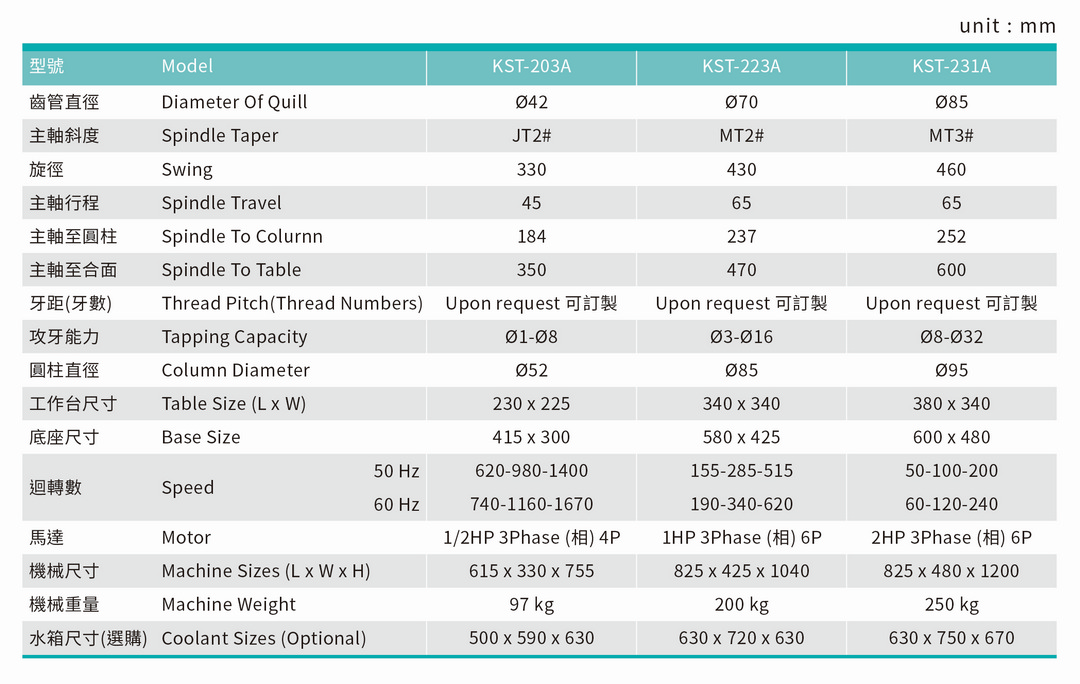

MODEL |
KST-203A |
KST-223A |
KST-231A |
|

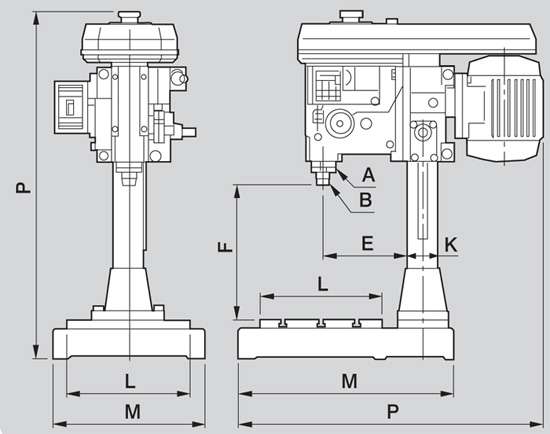

A |
Diameter of quill |
Ø42 |
Ø70 |
Ø85 |
|
B |
Spindle taper |
JT 2# |
MT 2# |
MT 3# |
|
C |
Swing |
330 |
430 |
460 |
|
D |
Spindle travel |
45 |
65 |
65 |
|
E |
Spindle to column |
184 |
237 |
252 |
|
F |
Spindle to table |
350 |
470 |
600 |
|
G |
Thread pitch (Thread numbers) |
Upon request |
Upon request |
Upon request |
|
H |
Tapping capacity |
Ø1-Ø8 |
Ø3-Ø16 |
Ø8-Ø32 |
|
K |
Column diameter |
Ø52 |
Ø85 |
Ø95 |
|
L |
Table size |
230x225 |
340x340 |
380x340 |
|
M |
Base sizes |
415x300 |
580x425 |
600x480 |
|
N |
Speed 50Hz |
620-980-1400 |
155-285-515 |
50-100-200 |
|
|
Speed 60Hz |
740-1160-1670 |
190-340-620 |
60-120-240 |
|
O |
Motor |
1/2 HP-3 phase 4P |
1 HP-3 phase 6P |
2 HP-3 phase 6P |
|
P |
Machine sizes |
615x330x755 |
825x425x1040 |
825x480x1200 |
|
Q |
Machine weight |
97kg |
200kg |
250kg |
|
|
Coolant sizes (Optional) |
500x590x630 |
630x720x630 |
630x750x670 |
Hexangular collets and chucks and other accessories are not included for the above machine products / King Sang Machines.
