3 WAY VISE
CC-107 3 WAY VISE - DRILL PRESS VISE
|

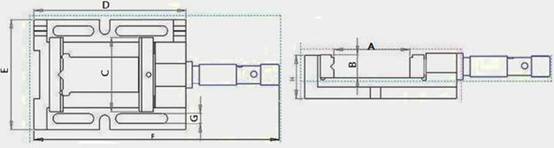

MODEL |
A |
B |
C |
D |
E |
F |
G |
H |
Clamping Force(TON) |
KG |
|
CC-107-4 |
101 |
32 |
104 |
209 |
156 |
340 |
12 |
62 |
1.6 |
5.9 |
Feature：
l 3 dimension processed surfaces are applicable for clamping work piece on drill press machine & milling machine.
l Designed with solid structure, main body is made of FCD45, assemble a pair of heat treated steel jaws with hardness HRC 45° ~ 50°.
l Jaw pair and handle are surface treated by black oxide finish.
l Front fixed prismatic jaw with cross V-grooves is designed for clamping work piece firmly in both vertical & horizontal directions.
l The verticality tolerance between each 2 surface of 3 dimensions are controlled in 0.10mm
