Tool Presetter

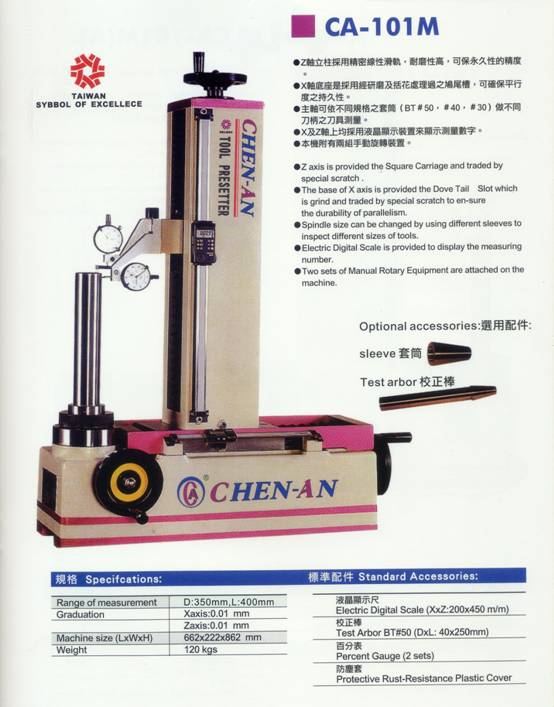

Model : CA-101M

Q'ty :

Description

刀具設定儀 Tool Presetter

1.Z axis is provided the Square Carriage and traded by special scratch.

2.The base of X axis is provided the Dove Tail Slot which is grind and traded by special scratch to en-sure the durability of parallelism.

3.Spindle size can be changed by using different sleeves to inspect different sizes of tools.

4.Electric Digital Scale is provided to display the measuring number.

5.Two sets of Manual Rotary Equipment are attached of the machine.
