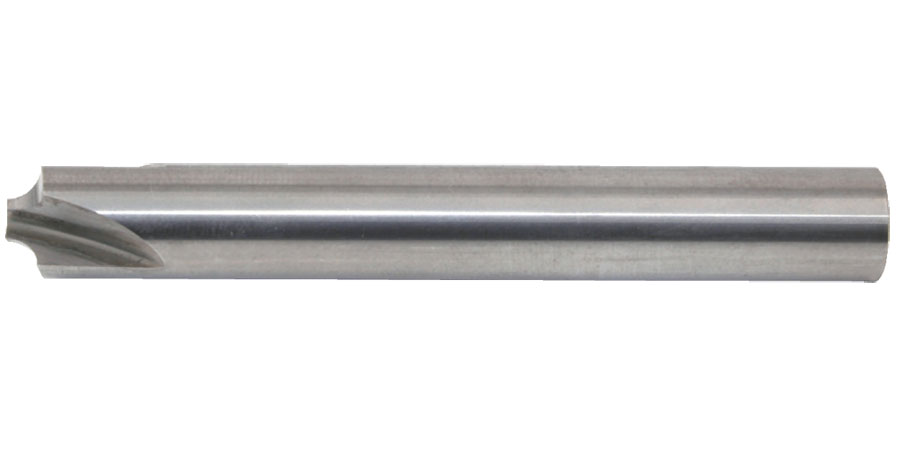

SOLID CARBIDE CORNER-ROUNDING END MILL

Carbide Corner-Rounding End Mill is complete made of carbide for milling the small diameter of arc corner with good wear resistance.

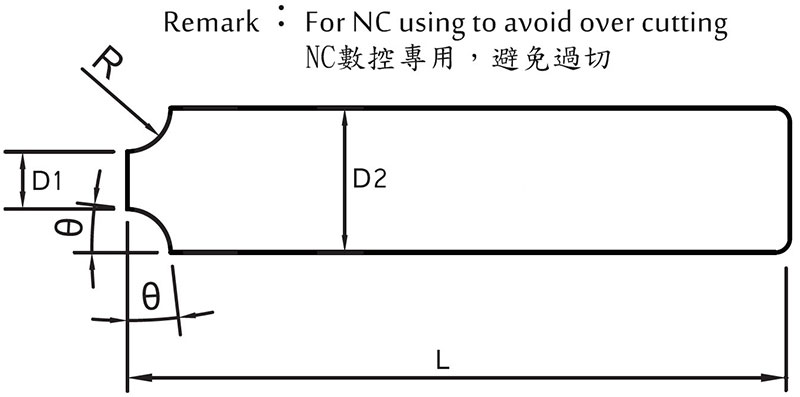

PART NO.	CORNER RADIUS	PILOT DIAMETER (D1)	DIAMETER (D2)	FLUTE	OVERALL LENGTH (L)
EWART04D-05	0.5R	3	4	3	50
EWART04D-075	0.75R	2.5	4	3	50
EWART04D-10	1R	2	4	3	50
EWART06D-125	1.25R	3.5	6	3	50
EWART06D-15	1.5R	3	6	3	50
EWART06D-175	1.75R	2.5	6	3	50
EWART06D-20	2R	2	6	3	50
EWART08D-25	2.5R	3	8	3	60
EWART08D-30	3R	2	8	3	60
EWART10D-35	3.5R	3	10	3	75
EWART12D-40	4R	4	12	3	75
EWART14D-50	5R	4	14	3	75
EWART16D-60	6R	4	16	3	100
