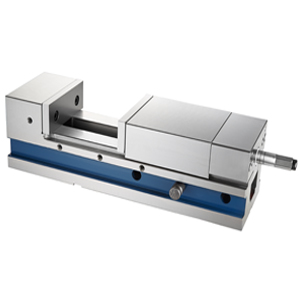

MC HYDRAULIC ANGLE LOCK VISE (BUILT-IN TYPE)
CMHA - MC HYDRAULIC ANGLE LOCK VISE (BUILT-IN TYPE)
|
model |
A |
B |
C |
D |
E |
F |
G |
I |
M |
P |
|
CMHA-100 |
105 |
404 |
540 |
62 |
42 |
64.5 |
40 |
16 |
122 |
12.5 |
|
CMHA-150 |
154 |
507 |
710 |
85 |
57 |
84.5 |
55 |
18 |
165 |
15.5 |
|
CMHA-200 |
200 |
606 |
755 |
95 |
62 |
89.5 |
67 |
18 |
190 |
18.5 |
|
model |
Clamping range J |
Clamping force kgf |
Weight kg |
||
|
X |
Y |
Z |
|||
|
CMHA-100 |
0-85 |
85-170 |
2500 |
22 |
|
|
CMHA-150 |
0-90 |
90-180 |
180-270 |
5000 |
50 |
|
CMHA-200 |
0-100 |
100-200 |
200-300 |
7000 |
80 |
Features：
l Vise body is made of spherical graphite cast iron FCD600.
l Down thrust with "semi - sphere" to prevent work - piece lifts.
l Vise can side - lock to work. （Vertical tolerance of side lock is 90° = 0.015/100mm）.
l Vise bed hardened to HRC45°, ensure accuracy and durable.
l Vise's slid - chuck can take out, it's convenient to clean away iron filings for inside of vise.
l Vise bed height - size and guide block side are all made with full control, can many vises to work together.
