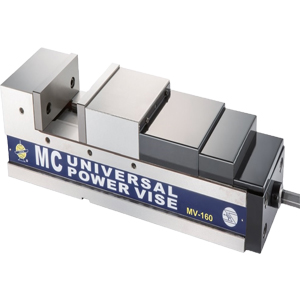

MC PRECISION MACHINE VISE
MV -MC PRECISION MACHINE VISE
MODEL
A
B
C
D
E
F
G
H
I
M
P
J
J1
J2
J3
KG
MV-100A
100
395
485
85
53
60
50
25
18
110
15
200
270
310
380
26
MV-130A
130
470
560
100
58
75
55
25
18
160
15
250
330
360
450
44
MV-160A
160
545
635
100
63
80
60
25
18
200
18
300
380
420
520
63
MV-160S
160
488
580
100
63
80
60
25
18
200
18
250
340
380
470
57
MV-200A
200
605
695
110
63
95
60
25
18
220
18
340
460
490
600
84
Features：
l The vise is made by precision processing and grinding processes, it's suitable for vertical / horizontal machine centers to precision processing.
l Vise body material is high ductility of spherical graphite cast iron (FCD600) integral product design, vise both sides of the slide hardened heat (HRC50°), ensure high precision and high wear resistance, high tensile strength.
l Jaw hardened heat (HRC55 °).
l Angle lock semi-sphere can be generated under the power of the lock, removes workpiece to be lifted.

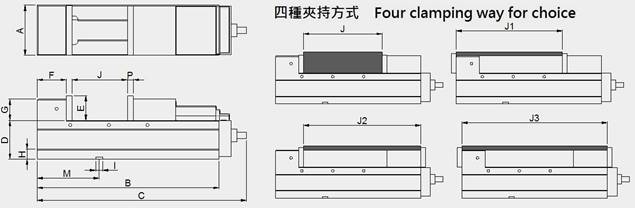

l The vise has four clamping ways for client to choice.
l The vise with anti-litter design prevents iron filings drop into the vise, and iron filings easily discharged and extend its lifetime.
l These vises have fixed specifications. Many vises will be used together at the same time.
