DRILL PRESS VISE
CC-102 DRILL PRESS VISE
|

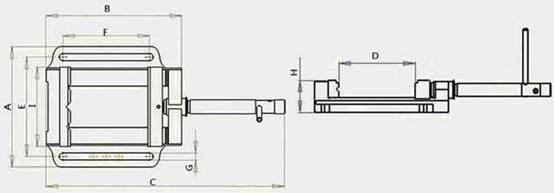

MODEL |
A |
B |
C |
D |
E |
F |
G |
H |
I |
Clamping Force |
KG |
|
CC-102-3 |
167 |
165 |
290 |
85 |
135 |
81 |
12 |
50 |
84 |
1.5 |
3.5 |
|
CC-102-4 |
202 |
203 |
343 |
100 |
162 |
101 |
13 |
60 |
104 |
1.6 |
5.7 |
|
CC-102-5 |
226 |
230 |
390 |
125 |
190 |
130 |
13 |
67 |
132 |
1.75 |
8.2 |
|
CC-102-6 |
254 |
266 |
450 |
152 |
214 |
154 |
18 |
75 |
156 |
1.75 |
11.6 |
Feature：
l Suitable for clamping work piece on drill press machine & milling machine.
l Designed with solid structure, main body is made of FC15, assemble a pair of heat treated steel jaws with hardness HRC 45°~50°.
l Jaw pair and handle are surface treated by black oxide finish.
l Front fixed prismatic jaw with cross V-grooves is designed for clamping work piece firmly in both vertical & horizontal directions.
