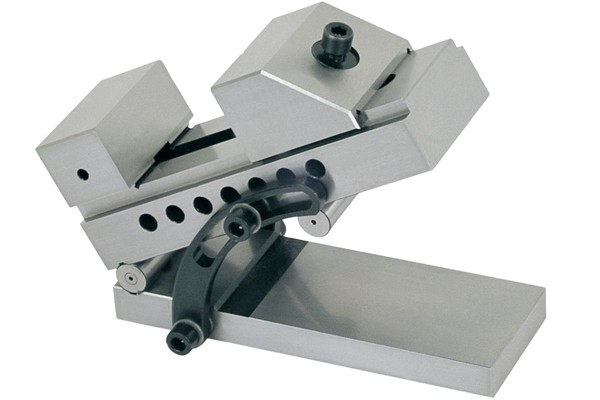

SINE VISE - SV-Z
SINE VISE - SV-Z
PARALLELISM: 0.005 MM / 100 MM
PERPENDICULARITY: 0.005 MM / 100 MM
|

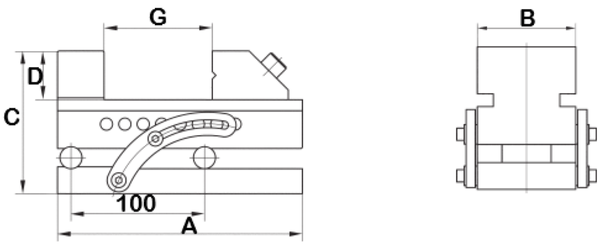

MODEL |
A |
B |
C |
D |
G |
HARDNESS |
KG |
|
SV-20-Z |
140 |
50 |
79.36 |
25 |
65 |
HRC58~62 |
3.2 |
|
SV-25-Z |
175 |
63 |
92.36 |
32 |
85 |
5.3 |
|
|
SV-30-Z |
190 |
73 |
104 |
35 |
100 |
8.3 |
It is ideal for workpiece angle positioning, precision inspection, and grinding applications, meeting the demands of high-precision operations.
|
MODEL |
A |
B |
C |
D |
G |
HARDNESS |
KG |
|
SV-20-Z |
140 |
50 |
79.36 |
25 |
65 |
HRC58~62 |
3.2 |
|
SV-25-Z |
175 |
63 |
92.36 |
32 |
85 |
5.3 |
|
|
SV-30-Z |
190 |
73 |
104 |
35 |
100 |
8.3 |
