CARBIDE TIPPED BALL NOSE END MILL

Model : AOT

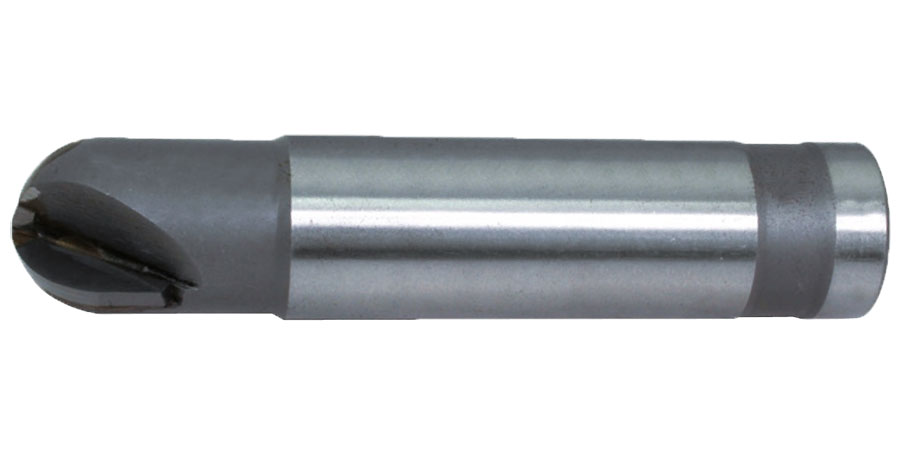

CARBIDE TIPPED BALL NOSE END MILL


Ball Nose End Mill is for various kinds of curved surface machining and arc groove machining. The side edge of Ball Nose End Mill does not mill and only the tip is milling.

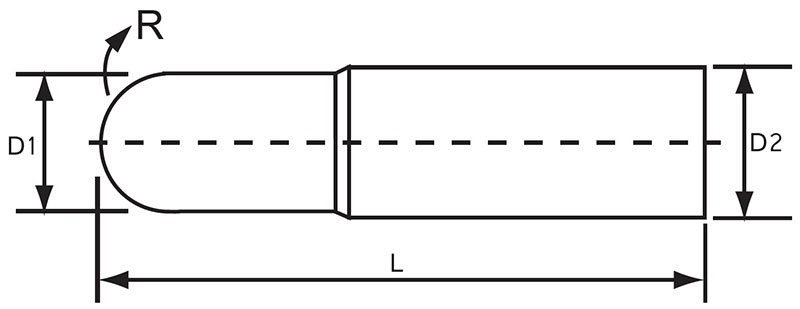

PART NO. DIAMETER (D1) CORNER RADIUS (R) FLUTE SHANK DIAMETER (D2) OVERALL LENGTH (L)
AOT127 1/2" 6.35 2 16 95
AOT15875 5/8" 7.938 2 16 95
AOT1905 3/4" 9.525 2 20 110
AOT22225 7/8" 11.11 2 20 120
AOT254 1" 12.7 2 25 125
AOT28575 1-1/8" 14.288 2 25 125
AOT3175 1-1/4" 15.875 2 32 125
AOT381 1-1/2" 19.05 2 32 130
AOT508 2" 25.4 2 32 130
AOT14 14 7 2 16 95
AOT15 15 7.5 2 16 95
AOT16 16 8 2 16 95
AOT18 18 9 2 20 115
AOT20 20 10 2 20 115
AOT21 21 10.5 2 20 115
AOT22 22 11 2 20 115
AOT24 24 12 2 25 115
AOT25 25 12.5 2 25 125
AOT28 28 14 2 32 130
AOT30 30 15 2 32 130
AOT32 32 16 2 32 130
AOT36 36 18 2 32 130
AOT38 38 19 2 32 130
AOT40 40 20 2 32 130
AOT50 50 25 2 32 130
AOT60 60 30 2 32 140
