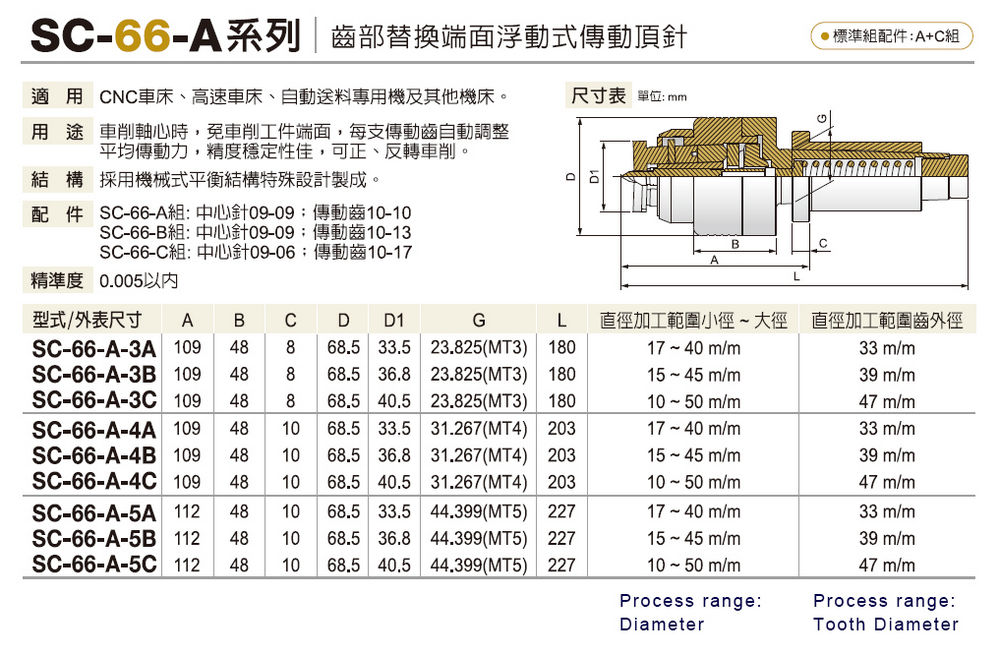

SC-66-A  End surface floated type Live Center

• Applicable to: CNC lathes, high-speed lathes, automatic feeding machines and other machine tools.
• Uses: When turning the shaft center, it is not necessary to turn the end face of the workpiece, and each transmission tooth automatically adjusts the average transmission force, with good accuracy and stability, and can be turned in positive and negative directions.
• Structure: It is specially designed with mechanical balance structure.
• Accessories:
• SC-66-A Group: Center Pin 09-09; Transmission Gear 10-10
• SC-66-B group: center pin 09-09; transmission tooth 10-13
• SC-66-C group: center pin 09-06; transmission tooth 10-17

• Accuracy: within 0.005
