CARBIDE TIPPED COUNTERSINK (FOR DRILLING)
Model :
AVTH

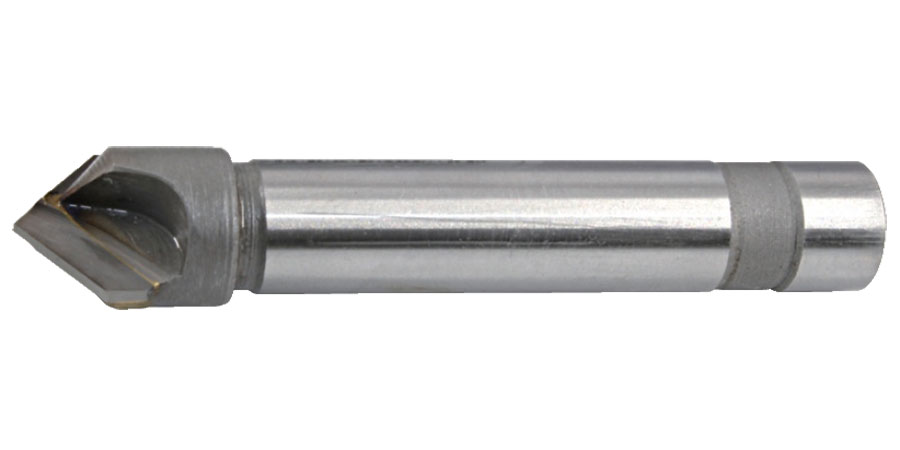

CARBIDE TIPPED COUNTERSINK (FOR DRILLING)
Chamfering Cutter (Drilling Type) is welded with carbide flutes and suitable for up / down moving only not for milling, and the chamfering angle is 90 degree.

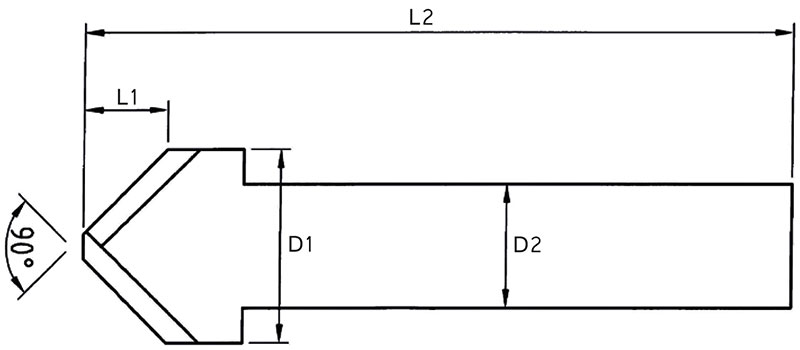

| PART NO. | DIAMETER (D1) | FLUTE LENGTH (L1) | FLUTE | SHANK DIAMETER (D2) | OVERALL LENGTH (L2) |
|---|---|---|---|---|---|
| AVTH90-016 | 16 | 8 | 2 | 12 | 78 |
| AVTH90-020 | 20 | 10 | 2 | 12 | 80 |
| AVTH90-025 | 25 | 12.5 | 2 | 12 | 82.5 |
| AVTH90-030 | 30 | 15 | 2 | 12 | 85 |
| AVTH90-035 | 35 | 17.5 | 2 | 12 | 87.5 |
| AVTH90-040 | 40 | 20 | 4 | 12 | 90 |
| AVTH90-050 | 50 | 25 | 4 | 12 | 95 |
| AVTH90-060 | 60 | 30 | 6 | 12 | 100 |
