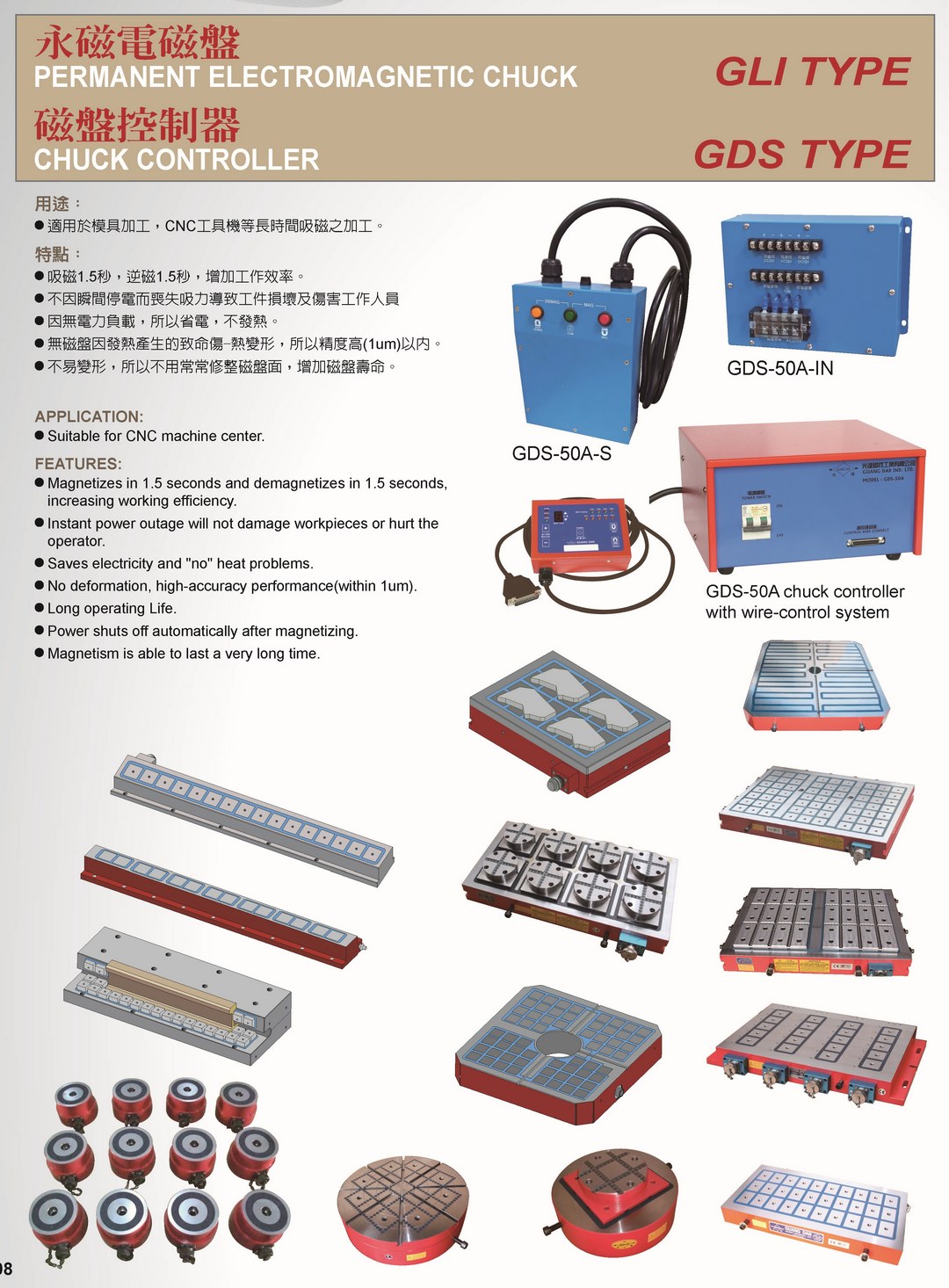

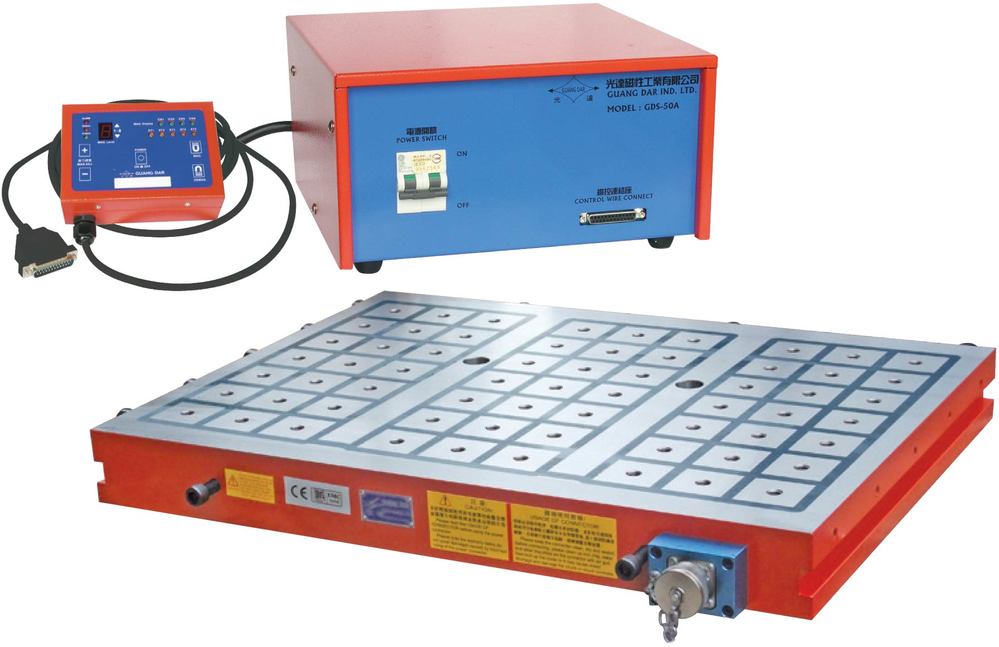

PERMANENT ELECTROMAGNETIC CHUCK / CHUCK CONTROLLER
PERMANENT ELECTROMAGNETIC CHUCK / CHUCK CONTROLLER
● Suitable for CNC machine center.
FEATURES﹕
● Magnetizes in 1.5 seconds and demagnetizes in 1.5 seconds,increasing working efficiency.
● Instant power outage will not damage workpieces or hurt the operator.
● Saves electricity and "no" heat problems.
● No deformation, high-accuracy performance(within 1um).
● Long operating Life.
● Power shuts off automatically after magnetizing.
● Magnetism is able to last a very long time.
Model : GLI TYPE / GDS TYPE

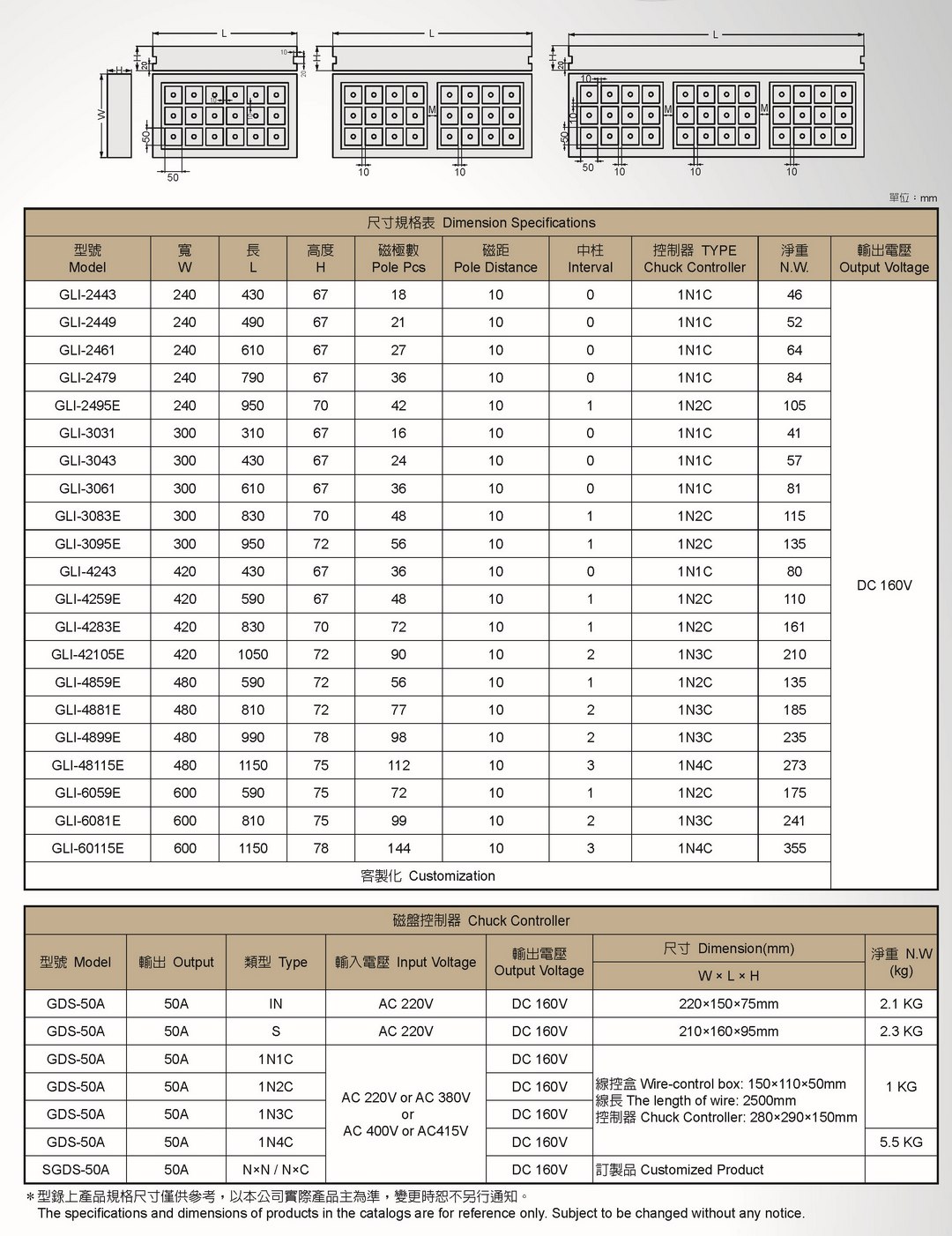

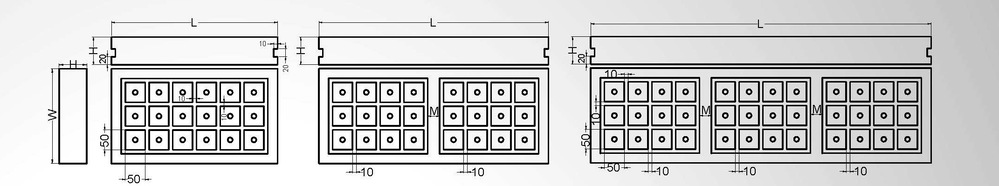

Dimension Specifications
Model
W
L
H
Pole Pcs
Pole Distance
Interval
TYPE Chuck Controller
N.W.
Output Voltage
GLI-2443
240
430
67
18
10
0
1N1C
46
DC 160V
GLI-2449
240
490
67
21
10
0
1N1C
52
GLI-2461
240
610
67
27
10
0
1N1C
64
GLI-2479
240
790
67
36
10
0
1N1C
84
GLI-2495E
240
950
70
42
10
1
1N2C
105
GLI-3031
300
310
67
16
10
0
1N1C
41
GLI-3043
300
430
67
24
10
0
1N1C
57
GLI-3061
300
610
67
36
10
0
1N1C
81
GLI-3083E
300
830
70
48
10
1
1N2C
115
GLI-3095E
300
950
72
56
10
1
1N2C
135
GLI-4243
420
430
67
36
10
0
1N1C
80
GLI-4259E
420
590
67
48
10
1
1N2C
110
GLI-4283E
420
830
70
72
10
1
1N2C
161
GLI-42105E
420
1050
72
90
10
2
1N3C
210
GLI-4859E
480
590
72
56
10
1
1N2C
135
GLI-4881E
480
810
72
77
10
2
1N3C
185
GLI-4899E
480
990
78
98
10
2
1N3C
235
GLI-48115E
480
1150
75
112
10
3
1N4C
273
GLI-6059E
600
590
75
72
10
1
1N2C
175
GLI-6081E
600
810
75
99
10
2
1N3C
241
GLI-60115E
600
1150
78
144
10
3
1N4C
355
Customization

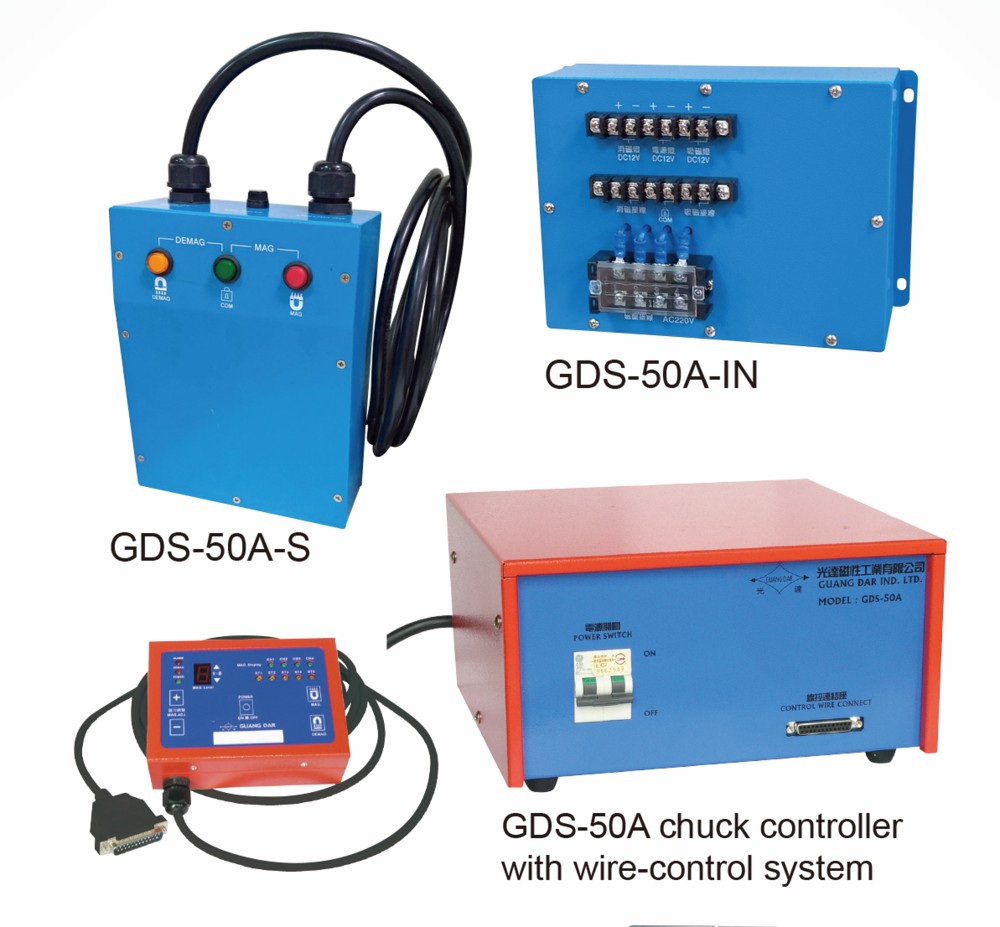

Chuck Controller
Model
Output
Type
Input Voltage
Output Voltage
Dimension(mm)
N.W (kg)
W × L × H
GDS-50A
50A
IN
AC 220V
DC 160V
220×150×75mm
2.1 KG
GDS-50A
50A
S
AC 220V
DC 160V
210×160×95mm
2.3 KG
GDS-50A
50A
1N1C
AC 220V or AC 380V
or
AC 400V or AC415V
DC 160V
Wire-control box: 150×110×50mm
The length of wire: 2500mm
Chuck Controller: 280×290×150mm
1 KG
GDS-50A
50A
1N2C
DC 160V
GDS-50A
50A
1N3C
DC 160V
GDS-50A
50A
1N4C
DC 160V
5.5 KG
SGDS-50A
50A
N×N / N×C
DC 160V
Customized Product
