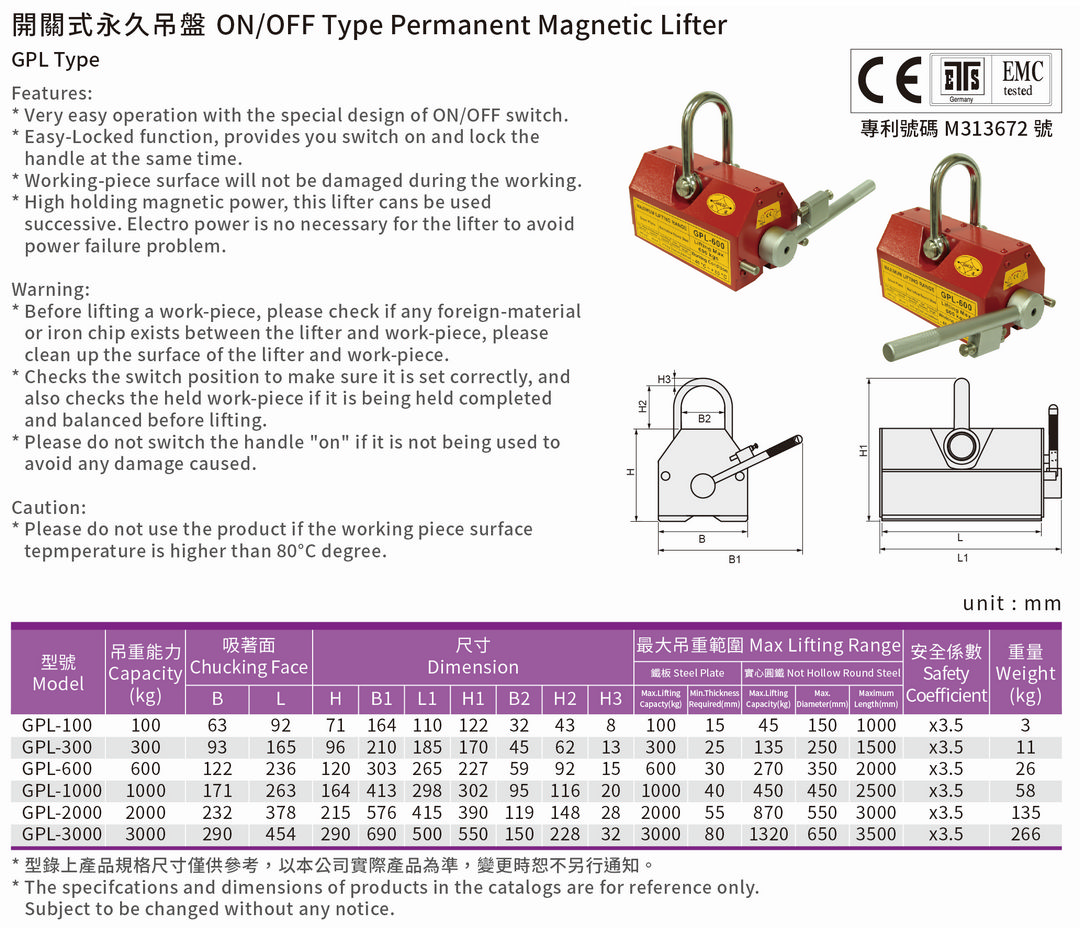

ON/OFF Type Permanent Magnetic Lifter
ON/OFF Type Permanent Magnetic Lifter
1.Before lifting a work-piece, please check if any foreign-material or iron chip exists between the lifter and work-piece, please clean up the surface of the lifter and work-piece.
2.Checks the switch position to make sure it is set correctly, and also checks the held work-piece if it is being held completed and balanced before lifting.
3.Please do not switch the handle "on" if it is not being used to avoid any damage caused.
CAUTION:
● Please do not use the product if the working piece surface tepmperature is higher than 80°C degree.
APPLICATION:
● Suitable for carrying various Iron material work-piece.
FEATURES﹕
● Very easy operation with the special design of ON/OFF switch. Easy-Locked function, provides you switch on and lock the handle at the same time.
● Working-piece surface will not be damaged during the working.
● High holding magnetic power, this lifter cans be used successive. Electro power is no necessary for the lifter to avoid power failure problem.
Model : GPL TYPE
|
Model |
Capacity (KG) |
Chucking face |

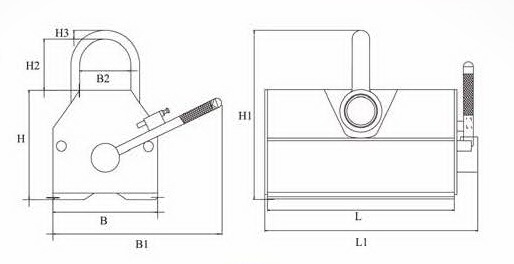

Dimension |
Min Thickness Max Lifting Range |
Safety Coefficient |
Weight |
|||||||||||
|
Steel Plate |
Not Hollow Round Steel |
||||||||||||||||
|
B |
L |
H |
B1 |
L1 |
H1 |
B2 |
H2 |
H3 |
max. litting capacity(kg) |
mix. thickness required(mm) |
max. lifting capacity(kg) |
max. diameter(mm) |
maximum Length(mm) |
(KG) |
|||
|
GPL-100 |
100 |
63 |
92 |
71 |
164 |
110 |
122 |
32 |
43 |
8 |
100 |
15 |
45 |
150 |
1000 |
×3.5 |
3 |
|
GPL-300 |
300 |
93 |
165 |
96 |
210 |
185 |
170 |
45 |
62 |
13 |
300 |
25 |
135 |
250 |
1500 |
11 |
|
|
GPL-300L |
300 |
93 |
300 |
96 |
210 |
320 |
170 |
45 |
62 |
13 |
300 |
25 |
135 |
250 |
1500 |
19.5 |
|
|
GPL-600 |
600 |
122 |
236 |
120 |
303 |
265 |
227 |
59 |
92 |
15 |
600 |
30 |
270 |
350 |
2000 |
26 |
|
|
GPL-600L |
600 |
122 |
440 |
120 |
303 |
469 |
227 |
59 |
92 |
15 |
600 |
30 |
270 |
350 |
2000 |
47.5 |
|
|
GPL-1000 |
1000 |
171 |
263 |
164 |
413 |
298 |
302 |
95 |
116 |
20 |
1000 |
40 |
450 |
450 |
2500 |
58 |
|
|
GPL-2000 |
2000 |
232 |
378 |
215 |
576 |
415 |
390 |
119 |
148 |
28 |
2000 |
70 |
870 |
550 |
3000 |
135 |
|
|
GPL-3000 |
3000 |
290 |
454 |
290 |
690 |
500 |
550 |
150 |
228 |
32 |
3000 |
80 |
1320 |
650 |
3500 |
266 |
|
