MC Precision Power Vise-Mechanically Pressurized MPPV

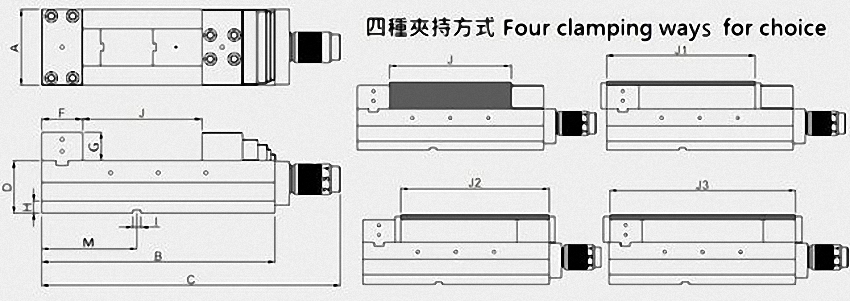

MODEL	A	B	C	D	E	F	G	H	I	M	P	J	J 1	J 2	J 3	Clamping force kgf	weight KG
MPPV-100A	100	395	530	85	53	60	50	25	18	110	15	200	280	320	390	3500	28
MPPV-130A	130	470	605	100	58	75	55	25	18	160	15	250	340	370	460	4500	45
MPPV-160A	160	545	680	100	63	80	60	25	18	200	18	300	390	430	530	5000	64
MPPV-160S	160	488	622	100	63	80	60	25	18	200	18	250	350	390	480	5000	58
MPPV-200A	200	605	740	110	63	95	60	25	18	220	18	340	460	490	600	5500	86

Features:

Ø       present vise each track by precision machining and polishing process for Li / precision machining of the machining center Integrated milling cutting horizontal use.

Ø       vise body of high ductility materials used spheroidal graphite cast iron (FCD600) is integrally molded design, this station via the sliding surface hardening heat treatment (of HRC50 [deg.]) , To ensure high-precision, high wear resistance, high tensile strength.

Ø       jaw heat treatment hardness of HRC55 [deg.] .

Ø   Angle -fixed semi-circular ball can produce the force of corner-fixing and locking, which can eliminate the floating of the workpiece.

Ø   Unique mechanical pressurization mechanism design (patent design), with fast pressurization and high clamping force ( up to 5500kgf) .

Ø       This clamping vise can be used in four different ways.

Ø       present vise with anti chip design prevents iron easily discharged into the interior of the internal and vise vise and prolong life.

Ø       body height of the vise given Jie-inch size ( D ), more than one can be used simultaneously.
