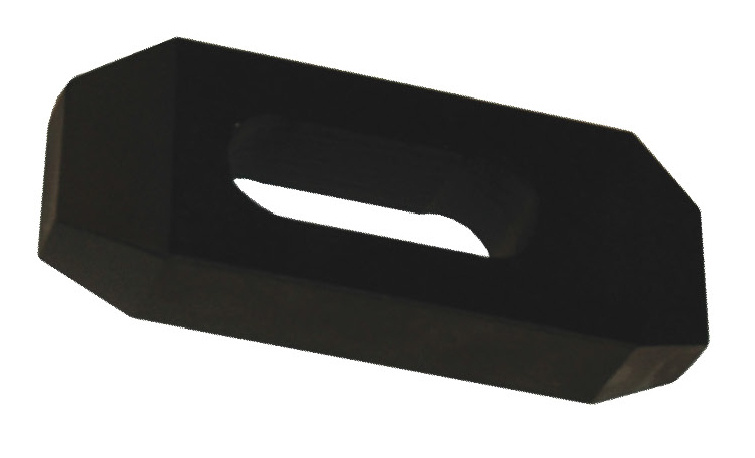

Plain clamp
CK-PC Plain clamp
l Purpose:Apply the surface of step clamp onto the surface of step block for fixing the work piece.
l Material:S45C, black oxide furnished
l Hardness of heat treatment：HRC32±5°
l Product spec.:
3/8S 3/8M 3/8L (slot width 11mm)
1/2S 1/2M 1/2L (slot width 15mm)
5/8S 5/8M 5/8L(slot width 18mm)
3/4S 3/4M 3/4L (slot width 21mm)
1S 1M 1L (slot width 26mm)
|
Order no. |
Model |
A |
B |
C |
D |
E |
F |
Applied stud |
|
|
Inch |
Metric |
||||||||
|
PC-63031 |
3/8(S) |
11 |
65 |
25.4 |
12.7 |
23 |
19 |
3/8 |
M10 |
|
PC-63032 |
3/8(M) |
11 |
100 |
26 |
15 |
35 |
30 |
||
|
PC-63033 |
3/8(L) |
11 |
150 |
28.5 |
19 |
48 |
54 |
||
|
PC-64041 |
1/2(S) |
15 |
65 |
30 |
13 |
25.5 |
16 |
1/2 |
M12-M14 |
|
PC-64042 |
1/2(M) |
15 |
100 |
32 |
19 |
34.5 |
31 |
||
|
PC-64043 |
1/2(L) |
15 |
150 |
32 |
22 |
47.5 |
55 |
||
|
PC-65051 |
5/8(S) |
18 |
65 |
32 |
16 |
25.5 |
14 |
5/8 |
M16 |
|
PC-65052 |
5/8(M) |
18 |
100 |
38 |
19 |
35 |
30 |
||
|
PC-65053 |
5/8(L) |
18 |
150 |
38 |
22 |
46.5 |
57 |
||
|
PC-66061 |
3/4(S) |
21 |
100 |
38 |
19 |
35 |
30 |
3/4 |
M18-20 |
|
PC-66062 |
3/4(M) |
21 |
150 |
38 |
25 |
50 |
50 |
||
|
PC-66063 |
3/4(L) |
21 |
200 |
44.5 |
28.5 |
65 |
70 |
||
|
PC-68081 |
1(S) |
26 |
150 |
50 |
32 |
55.5 |
39 |
7/8-1 |
M22,M24 |
|
PC-68082 |
1(M) |
26 |
200 |
50 |
38 |
65.5 |
69 |
||
|
PC-68083 |
1(L) |
26 |
250 |
50 |
38 |
88 |
74 |
||
|
PC-68084 |
1(XL) |
26 |
320 |
50 |
38 |
113 |
94 |
||
