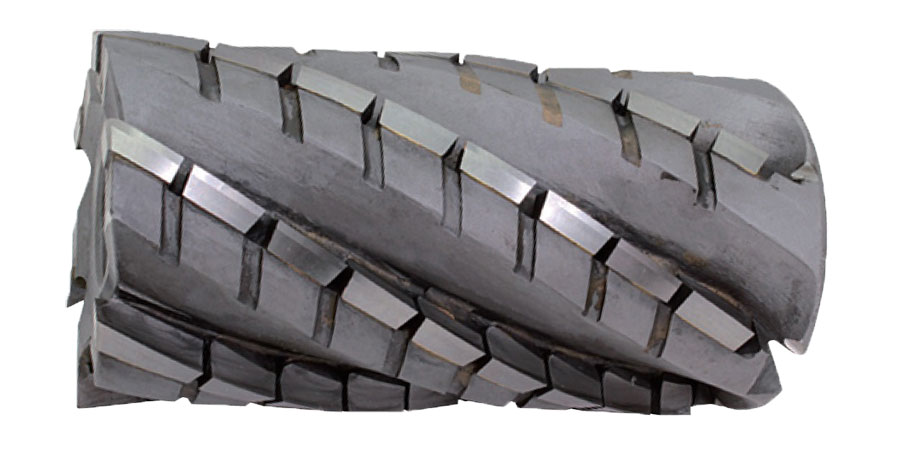

CARBIDE TIPPED CYLINDRICAL ROUGHING MILLING CUTTER

Cylindrical Roughing Milling Cutter is welded with carbide flutes used for side milling and roughing milling for rapid processing, suitable for heaving milling with good chip release, excellent cutting ability and high metal cutting rate.

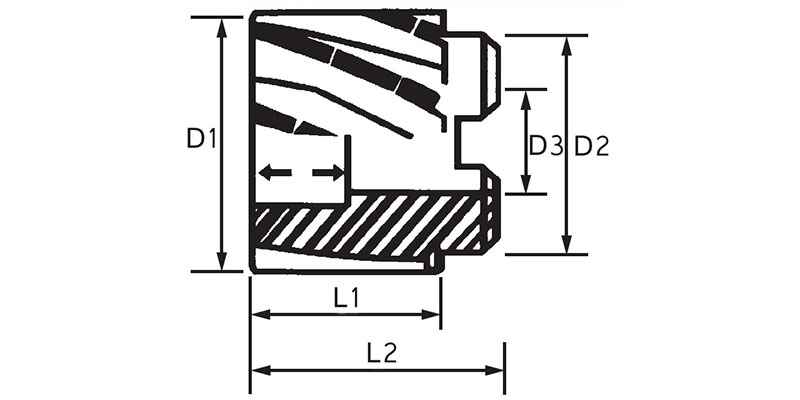

PART NO.	DIAMETER (D1)	FLUTE LENGTH (L1)	FLUTE	CONNECTING DIAMETER (D2)	BORE DIAMETER (D3)	OVERALL LENGTH (L2)
AUTC50-50	50	50	6	-	25.4	70
AUTC50-75	50	75	6	-	25.4	95
AUTC50-100	50	100	6	-	25.4	120
AUTC60-50	60	50	6	55	31.75	65
AUTC60-60	60	60	6	55	31.75	77
AUTC60-75	60	75	6	55	31.75	90
AUTC60-100	60	100	6	55	31.75	115
AUTC75-50	75	50	8	60	31.75	65
AUTC75-75	75	75	8	60	31.75	90
AUTC75-100	75	100	8	60	31.75	115
AUTC75-125	75	125	8	60	31.75	140
AUTC80-50	80	50	8	60	31.75	65
AUTC80-80	80	80	8	60	31.75	95
AUTC100-65	100	65	12	70	31.75	85
AUTC100-100	100	100	12	70	31.75	120
