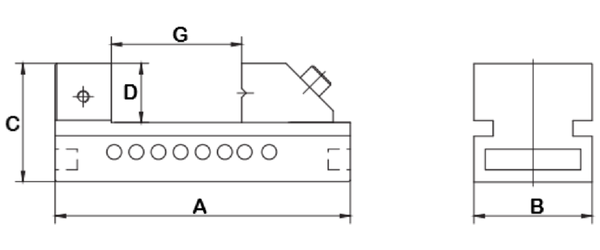

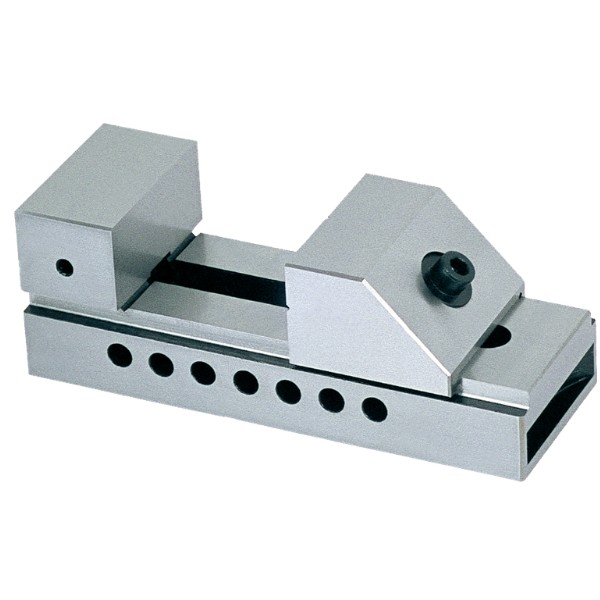

PIN-LOCATED TOOL VISE VB-Z
PIN-LOCATED TOOL VISE VB-Z
PARALLELISM: 0.005 MM / 100 MM
PERPENDICULARITY: 0.005 MM / 100 MM
|
MODEL |
A |
B |
C |
D |
G |
HARDNESS |
KG |
|
VB-15-Z |
100 |
36 |
45 |
20 |
40 |
HRC58~62 |
0.8 |
|
VB-20-Z |
140 |
50 |
50 |
25 |
65 |
1.75 |
|
|
VB-25-Z |
175 |
63 |
63 |
32 |
85 |
3.25 |
|
|
VB-30-Z |
190 |
73 |
67 |
35 |
100 |
4.15 |
|
|
VB-35-Z |
235 |
88 |
85 |
40 |
125 |
7.5 |
|
|
VB-40-Z |
245 |
100 |
90 |
45 |
125 |
9.8 |
|
|
VB-50-Z |
285 |
125 |
100 |
50 |
160 |
15 |
|
|
VB-60-Z |
330 |
150 |
100 |
50 |
200 |
22 |
- THE TOOL VISE IS MADE OF ALLOY STEEL WITH CARBURIZING TREATMENT,
ENSURING HIGH HARDNESS AND WEAR RESISTANCE.
- IT MAINTAINS EXCELLENT PRECISION AND STABLE CLAMPING PERFORMANCE WHETHER USED HORIZONTALLY,
VERTICALLY OR FLAT.
|
MODEL |
A |
B |
C |
D |
G |
HARDNESS |
KG |
|
VB-15-Z |
100 |
36 |
45 |
20 |
40 |
HRC58~62 |
0.8 |
|
VB-20-Z |
140 |
50 |
50 |
25 |
65 |
1.75 |
|
|
VB-25-Z |
175 |
63 |
63 |
32 |
85 |
3.25 |
|
|
VB-30-Z |
190 |
73 |
67 |
35 |
100 |
4.15 |
|
|
VB-35-Z |
235 |
88 |
85 |
40 |
125 |
7.5 |
|
|
VB-40-Z |
245 |
100 |
90 |
45 |
125 |
9.8 |
|
|
VB-50-Z |
285 |
125 |
100 |
50 |
160 |
15 |
|
|
VB-60-Z |
330 |
150 |
100 |
50 |
200 |
22 |
