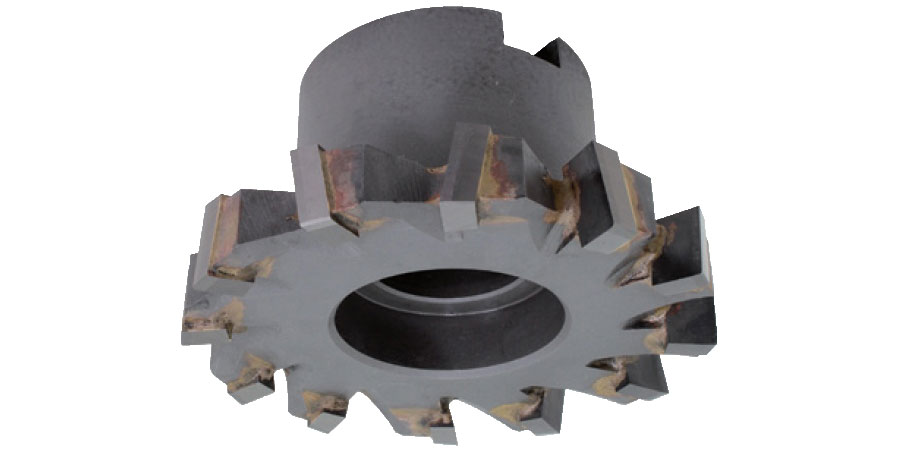

CARBIDE TIPPED STAGGERED TOOTH FACE MILLING CUTTER (CHIDORI TOOTH)

Staggered Tooth Face Milling Cutter (Chidori Tooth) is welded with carbide teeth and suitable for the face milling; it is staggered tooth for breaking & releasing chip more effectively to reduce the processing obstruction.

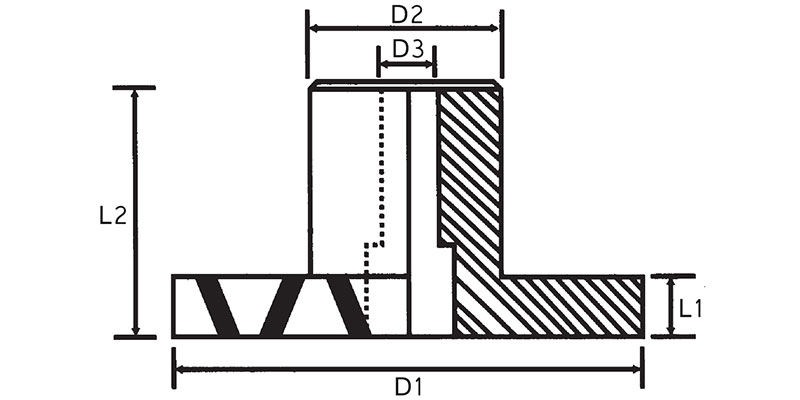

PART NO.	DIAMETER (D1)	FLUTE LENGTH (L1)	FLUTE	CONNECTING DIAMETER (D2)	BORE DIAMETER (D3)	OVERALL LENGTH (L2)
AMTX75	75	15	10	60	25.4	55
AMTX100	100	15 / 20	12	60	31.75	55
AMTX110	110	15 / 20	12	65	31.75	55
AMTX120	120	15	14	65	31.75	55
AMTX130	130	15 / 20	14	65	31.75	55
AMTX150	150	15 / 20	16	65	31.75	55
AMTX160	160	15 / 20	16	65	31.75	55
AMTX170	170	15 / 20	18	65	31.75	55
AMTX180	180	15 / 20	18	65	31.75	55
AMTX200	200	15 / 20	20	70	31.75	55
AMTX220	220	15 / 20	24	70	31.75	55
AMTX250	250	20 / 25	28	70	31.75	55
AMTX300	300	20 / 25	32	70	31.75	55
