CARBIDE TIPPED THREE FLUTE COUNTERSINKS
Model :
AVTV
CARBIDE TIPPED THREE FLUTE COUNTERSINKS
3 Flute Countersink Cutter / Chamfer Milling Tool is welded with carbide flutes and suitable for bore deburring with up / down moving only not for milling, that the chamfering angle is 90 degree with 3 flutes

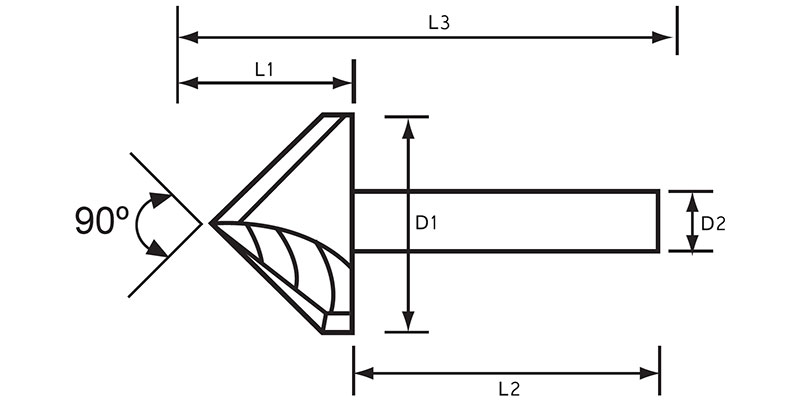

| PART NO. | PILOT DIAMETER | DIAMETER (D1) | FLUTE LENGTH (L1) | FLUTE | SHANK DIAMETER (D2) | SHANK LENGTH (L2) | OVERALL LENGTH (L3) |
|---|---|---|---|---|---|---|---|
| AVTV90-030 | 3 | 30 | 13.5 | 3 | 12 | 60 | 83.5 |
| AVTV90-040 | 3 | 40 | 18.5 | 3 | 12 | 60 | 88.5 |
| AVTV90-050 | 3 | 50 | 23.5 | 3 | 12 | 60 | 93.5 |
| AVTV90-060 | 3 | 60 | 28.5 | 3 | 12 | 60 | 98.5 |
